    CaseIH MX180 Magnum

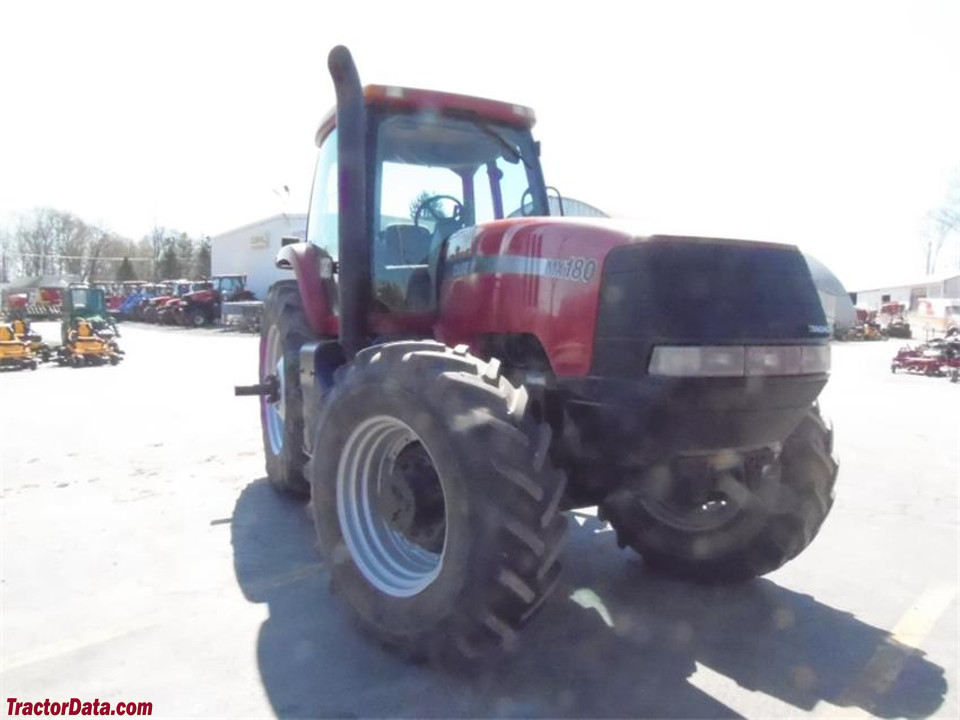

    CaseIH MX180 Magnum tractor photo
    1999 - 2002   Magnum Series
    Row-Crop tractor
    Previous model:CaseIH 8910
    Larger:CaseIH MX200






    Production:

    Manufacturer:CaseIH
    Factory:Racine, Wisconsin, USA
    Original price (USD):$87,000


    CaseIH MX180 Engine:

       CDC 8.3L 6-cyl diesel
    full engine details ...


    Capacity:

    Fuel:130 gal [492.1 L]
    Hydraulic system:45.5 gal [172.2 L]


    3-Point Hitch:

    Rear Type:III/IIIN


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPM:540/1000 (1.375)
    Engine RPM:540@1982
    1000@1974


    Dimensions & Tires:

    Wheelbase:118.3 inches [300 cm] (4WD)
    Weight:19220 to 20990 pounds
    Front tire:11.00-24
    Rear tire:18.4R46
    full dimensions and tires ...


    MX180 Serial Numbers:


    - Serial numbers unknown -



    CaseIH MX180 Power:

    PTO (claimed):145 hp [108.1 kW]
    Drawbar (tested):124.86 hp [93.1 kW]
    PTO (tested):175.68 hp [131.0 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Steering:hydrostatic power
    Brakes:differential hydraulic wet disc
    Cab:Cab standard


    Hydraulics:

    Type:PFC
    Capacity:45.5 gal [172.2 L]
    Valves:2
    Pump flow:30 gpm [113.6 lpm]


    Electrical:

    Ground:negative
    Charging system:alternator


    Battery:

    Volts:12
