CaseIH MX170 Maxxum Transmission


CaseIH MX170 Maxxum tractor photo
1998 - 2002
Maxxum Series
Series:MX150MX170 Maxxum
MXM175
Transmissions overview
16-speed partial power shift
32-speed creeper
Transmission
Type:partial power shift
Gears:16 forward and 12 reverse
Clutch:wet disc
Four power shift gears in four synchronized ranges. Three ranges in reverse.

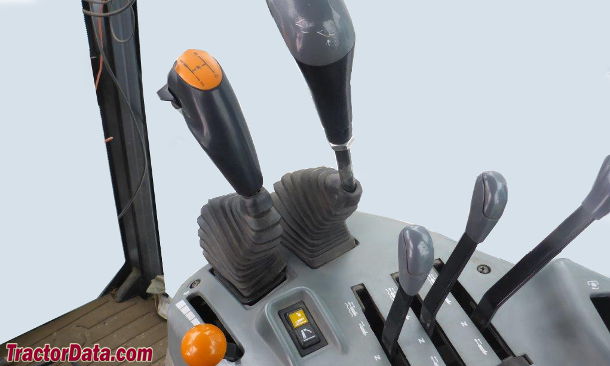

CaseIH MX170 Maxxum  transmission photo
Transmission
Type:creeper
Gears:32 forward and 24 reverse
Page information
Last update:February 20, 2011
