    CaseIH MX110 Maxxum

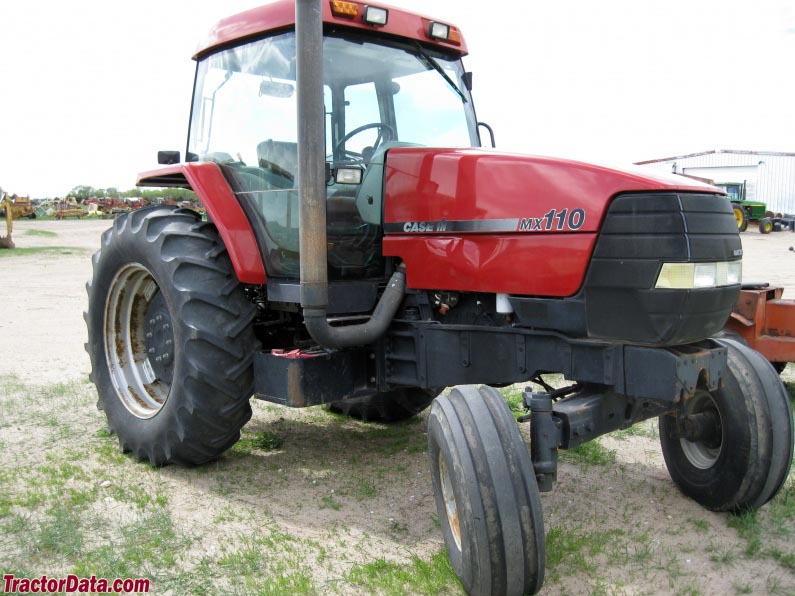

    CaseIH MX110 Maxxum tractor photo
    1997 - 1999   Maxxum Series
    Previous model:CaseIH 5230
    Larger:CaseIH MX120
    Smaller:CaseIH MX100






    Production:

    Manufacturer:CaseIH
    Factory:Racine, Wisconsin, USA
    Original price (USD):$45,000 (1999)


    CaseIH MX110 Engine:

       Cummins/CDC 5.9L 6-cyl diesel
    full engine details ...


    Capacity:

    Fuel:72 gal [272.5 L]
    Hydraulic system:17.5 gal [66.2 L]


    3-Point Hitch:

    Rear Type:II/IIIN
    Control:electronic lower link
    Rear lift (at 24"/610mm):8,393 lbs [3807 kg]


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540/1000 (1.375)


    Dimensions & Tires:

    Wheelbase:110.7 inches [281 cm] (2WD)
     106.3 inches [270 cm] (4WD)
    Weight:11300 to 12460 pounds
    Front tire:11.00-16
    Rear tire:18.4R-38
    full dimensions and tires ...


    CaseIH MX110 attachments:

     front-end loader
    all MX110 attachments ...


    MX110 Serial Numbers:

    Location:On inside of cab post near left door.
    1997: JJA0075300
    1998: JJA0083000
    1999: JJA0097438
    2000: JJA0103445
    2001: JJA0108300
    2002: JJA0115301

    how to read serial numbers...



    CaseIH MX110 Power:

    Engine:110 hp [82.0 kW]
    PTO (claimed):95 hp [70.8 kW]


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Differential lock:electrically-actuated wet disc
    Steering:hydrostatic power
    Brakes:wet disc
    Cab:Cab standard. Two-post folding ROPS available.


    Hydraulics:

    Type:closed center pressure flow compensated (PFC)
    Capacity:17.5 gal [66.2 L]
    Pressure:2950 psi [203.4 bar]
    Valves:2 to 4
    Pump flow:25 gpm [94.6 lpm]
    Total flow:28.9 gpm [109.4 lpm]


    Electrical:

    Ground:negative
    Charging system:alternator
    Charging amps:65 (ROPS)
     95 (cab)
    Charging volts:12


    Battery:

    Number:2
    Cold-cranking amps:900
    Volts:12
