Tractors > CaseIH > C80

CaseIH C80 - transmission

CaseIH C80 tractor photo
1998 - 2002   CX Utility Series
Utility tractor
Series next:CaseIH C90
Series back:CaseIH C70
more CaseIH C80 specifications...






Transmission:

Gears:8 forward and 4 reverse
Clutch:12-inch dry disc
Oil capacity:36 qts [34.1 L] (2WD)
 38.6 qts [36.5 L] (4WD)


Transmission:

Type:partial power shift
Gears:16 forward and 8 reverse
Clutch:12-inch dry disc
Oil capacity:36 qts [34.1 L] (2WD)
 38.6 qts [36.5 L] (4WD)

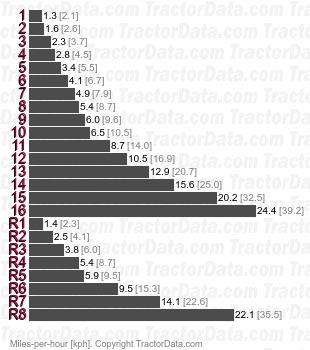

Speeds:
C80  partial power shift speeds


Transmission:

Gears:8 forward and reverse
Oil capacity:36 qts [34.1 L] (2WD)
 38.6 qts [36.5 L] (4WD)


Transmission:

Type:creeper
Gears:16 forward and 8 reverse
