CaseIH C70 Transmission


CaseIH C70 tractor photo
1998 - 2002
CX Utility Series
Utility tractor
Series:C60C70C80
Transmissions overview
8-speed
16-speed partial power shift
16-speed creeper
Transmission
Gears:8 forward and 4 reverse
Clutch:12-inch dry disc
Oil capacity:36 qts
34.1 L (2WD)
 38.6 qts
36.5 L (4WD)
Transmission
Type:partial power shift
Gears:16 forward and 8 reverse
Clutch:12-inch dry disc
Oil capacity:36 qts
34.1 L (2WD)
 38.6 qts
36.5 L (4WD)
Speeds

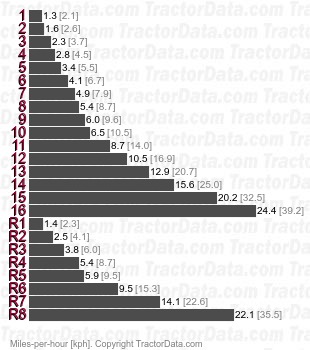

C70  partial power shift speeds
Transmission
Gears:8 forward and reverse
Oil capacity:36 qts
34.1 L (2WD)
 38.6 qts
36.5 L (4WD)
Transmission
Type:creeper
Gears:16 forward and 8 reverse
