Tractors > Leyland > 270

Leyland 270

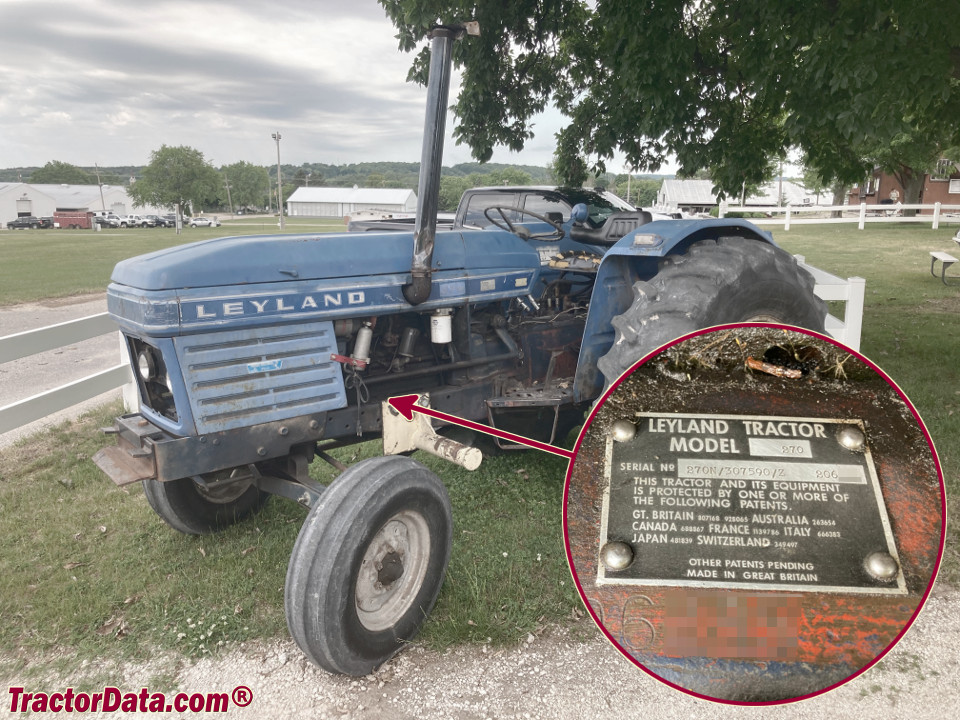

Leyland 270 tractor photo
1972 - 1976
Utility tractor
Series back:Leyland 255






Production:

Manufacturer:Leyland


Leyland 270 Engine:

   Leyland 3.8L 4-cyl diesel
full engine details ...


Capacity:

Fuel:18 gal [68.1 L]
Hydraulic system:14.8 gal [56.0 L]


3-Point Hitch:

Rear Type:II/I
Rear lift:4012 lbs [1819 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540
Engine RPM:540@1813


Dimensions & Tires:

Wheelbase:79.9 inches [202 cm]
Weight:5743 to 6305 pounds
Front tire:7.50-16
Rear tire:18.4-30
full dimensions and tires ...


270 Serial Numbers:


- Serial numbers unknown -



Leyland 270 Power:

Engine (gross):75 hp [55.9 kW]
Engine (net):71 hp [52.9 kW]
PTO (claimed):65 hp [48.5 kW]


Mechanical:

Chassis:4x2 2WD
Steering:power assist
Brakes:mechanical dry disc
Cab:Open operator station. Cab available.


Hydraulics:

Type:open center
Capacity:14.8 gal [56.0 L]
Pressure:2610 psi [180.0 bar]
Pump flow:7.9 gpm [29.9 lpm]


Battery:

Volts:12
