    Ferguson TO-30

    Ferguson TO-30 tractor photo
    1951 - 1954
    Utility tractor
    Previous model:Ferguson TO-20






    Production:

    Manufacturer:Ferguson
    Factory:Detroit, Michigan


    Ferguson TO-30 Engine:

       Continental 2.1L 4-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:10 gal [37.9 L]


    Power Take-off (PTO):

    Rear PTO:transmission
    Rear RPMs:540


    Dimensions & Tires:

    Wheelbase:70 inches [177 cm]
    Weight:2800 to 4482 pounds
    Front tire:4.00-19
    Rear tire:10-28
    full dimensions and tires ...


    TO-30 Serial Numbers:

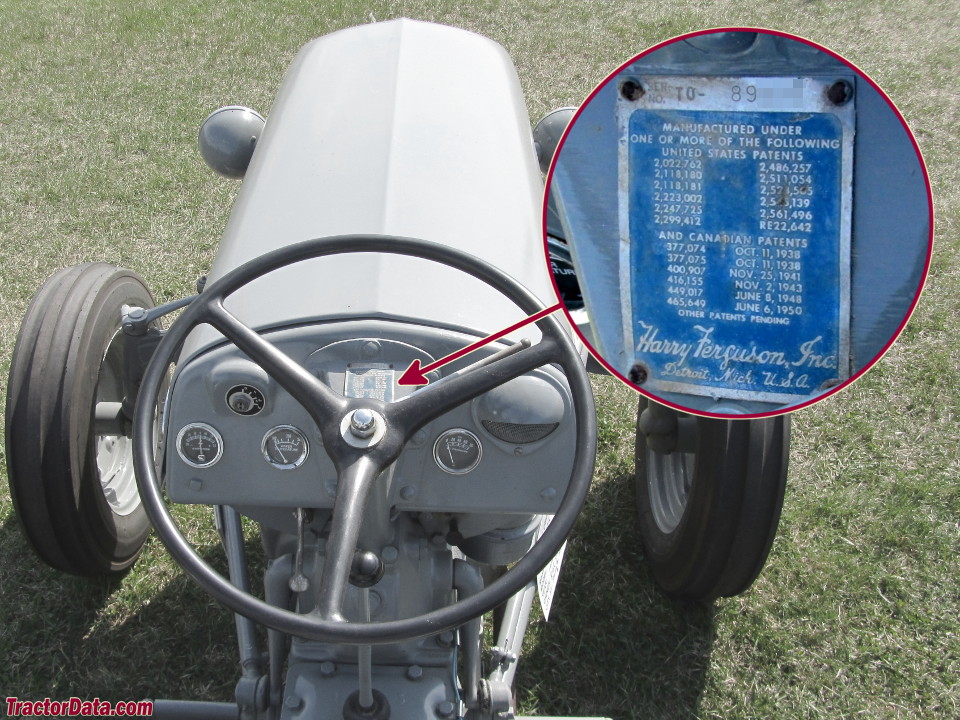

    Location:Serial number plate on instrument panel.
    photo of TO-30 serial number

    1951: 60001
    1952: 72680
    1953: 108645
    1954: 125929
    Final: 140000

    how to read serial numbers...



    Ferguson TO-30 Power:

    Drawbar (claimed):19 hp [14.2 kW]
    PTO (claimed):28 hp [20.9 kW]
    Drawbar (tested):24.37 hp [18.2 kW]
    Belt (tested):29.32 hp [21.9 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Brakes:differential mechanical expanding shoe (11x2 inch)
    Cab:Open operator station.


    Belt Pulley:

    Diameter:9 inches [22 cm]
    Width:6.5 inches [16 cm]
    RPMs:1358
    Speed:3207 ft/min [977.49 meters/min]


    Electrical:

    Ground:positive
    Charging system:Delco-Remy generator 1100529
    Charging amps:25
    Charging volts:6


    Battery:

    Number:1
    Volts:6
    Amp-hours:80
