Ferguson TO-30 Tests


Ferguson TO-30 tractor photo
1951 - 1954
Utility tractor
Series map:
TO-30
31.1hp
Nebraska Tractor Test 466

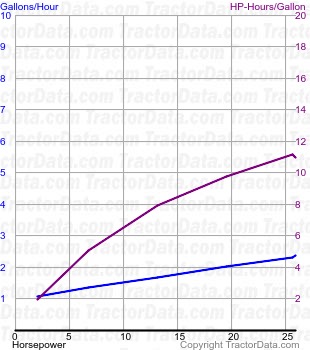

TO-30 fuel use from test 466
Nebraska Tractor Test 466
Gasoline 4-speed 2WD
October 5 - 11, 1951
Link: Nebraska Tractor Test 466 file
Belt power (max)29.32 hp
21.9 kW
Belt fuel use (max)2.7 gal/hour
10.2 l/hour
Drawbar performance
Max power24.37 hp
18.2 kW
Gear 2 used for power test.
Max pull2,994 lbs
1358 kg
Gear 1 used for pull test.
