Ferguson TE-20 Tests

Ferguson TE-20 tractor photo
1946 - 1948
Utility tractor
Nebraska Tractor Test 392

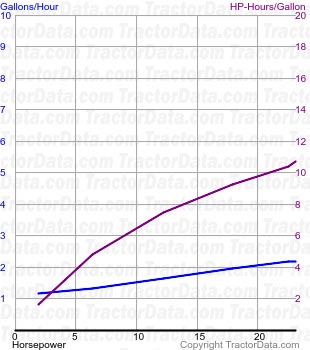

TE-20 fuel use from test 392
Nebraska Tractor Test 392
Gasoline 4-speed 2WD
April 26 - May 10, 1948
Link: Nebraska Tractor Test 392 file
Belt power (max):25.41 hp
18.9 kW
Belt fuel use (max):2.5 gal/hour
9.5 l/hour
Drawbar performance
Max power:20.70 hp
15.4 kW
Gear 2 used for power test.
Max pull:2,650 lbs
1202 kg
Gear 1 used for pull test.
