Steiger Cougar KR-1280

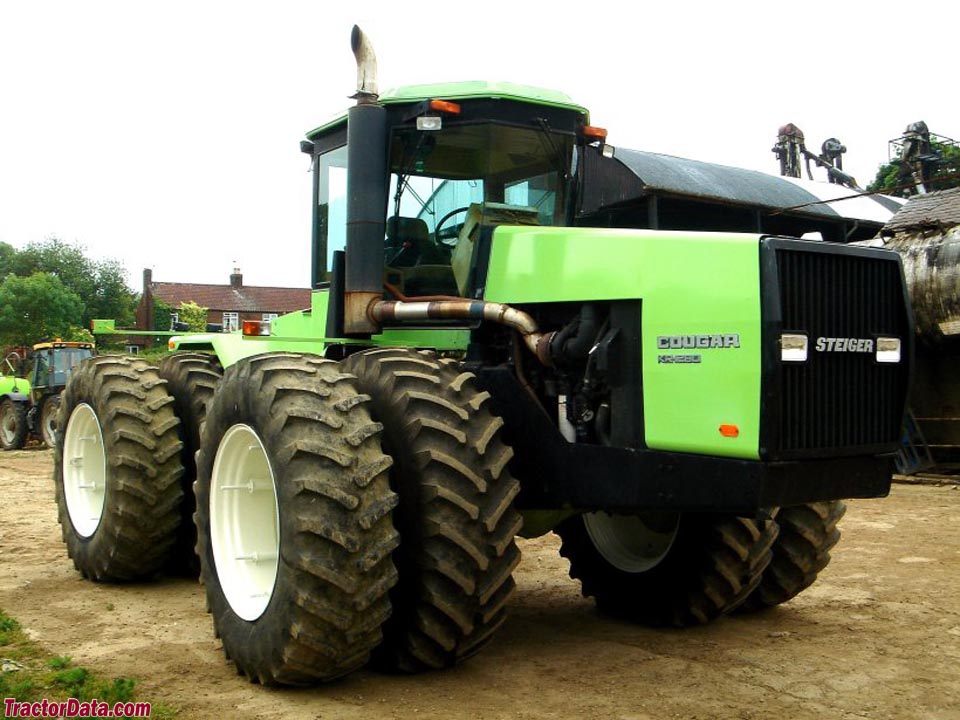

Steiger Cougar KR-1280 tractor photo
1985
1000 Series
Four-wheel Drive (4WD) tractor
Production
Manufacturer:Steiger
Type:Four-wheel Drive (4WD) tractor
Factory:Fargo, North Dakota, USA
Variants
CR1225:Caterpillar 225 HP
KR1225:Cummin 225 HP
CR1280:Caterpillar 280 HP
KR1280:Cummins 280 HP
Steiger Cougar KR-1280 Power
Engine:280 hp
208.8 kW
Drawbar (claimed):230 hp
171.5 kW
PTO (claimed):250 hp
186.4 kW
Mechanical
Chassis:4x4 articulated 4WD
Steering:articulated power
Brakes:hydraulic disc
Cab:Cab standard
Transmission:20-speed two-speed power shift
Transmission details ...
Hydraulics
Type:closed-center load sensing
Valves:3
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:1000
Dimensions & Tires
Weight:23,400 lbs
10614 kg
Front tire:18.4-38
Rear tire:18.4-38
Full dimensions and tires ...
Electrical
Charging system:alternator
