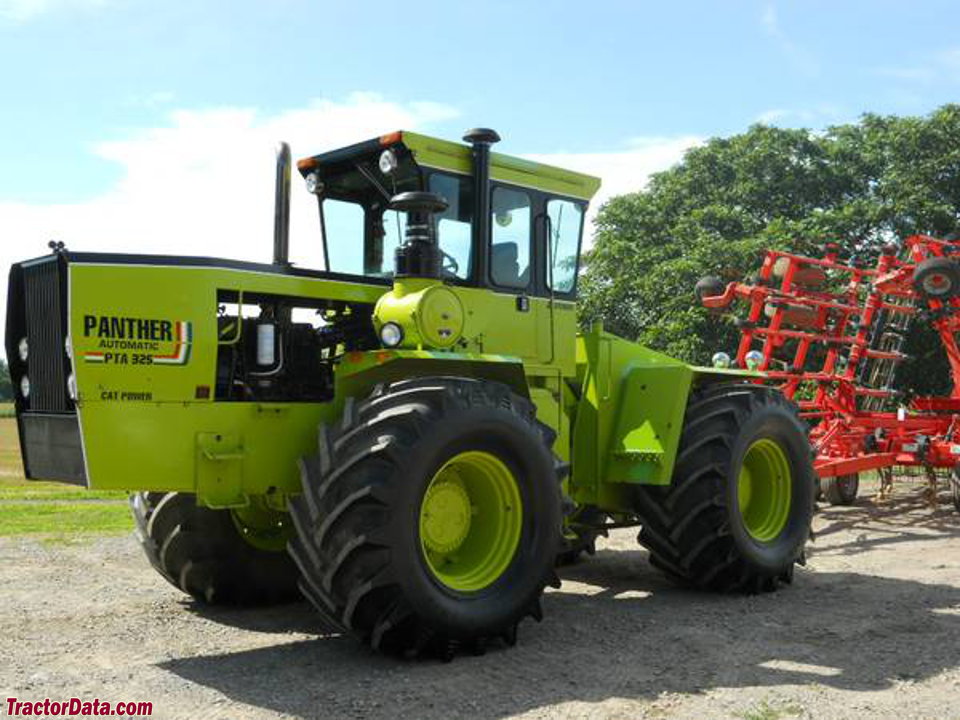

Steiger Panther III PTA-325
|
|
| Production | |
| Manufacturer | Steiger |
| Four-wheel Drive (4WD) tractor | |
| Built in Fargo, North Dakota, USA | |
| Original price was $110,000 in 1982 | |
| Steiger Panther III PTA-325 Engine | |
| Caterpillar 14.6L 6-cyl diesel | |
 Engine details ... |
| Steiger Panther III PTA-325 Transmission | |
| 10-speed power shift with torque converter | |
 Transmission details ... |
| Steiger Panther III PTA-325 Power | |
| Engine | 325 hp 242.4 kW |
| Mechanical | |
| Four-wheel drive | |
| Final drives | outboard planetary |
| Articulated power steering | |
| Hydraulic disc brakes | |
| Safari Cab standard with air-conditioning. | |
| Capacity | |
| Fuel | 225 gal 851.6 L |
| Hydraulic system | 22 gal 83.3 L |
| Hydraulics | |
| Type | open center |
| Capacity | 22 gal 83.3 L |
| Pressure | 2250 psi 155.1 bar |
| Valves | 3 to 5 |
| Pump flow | 29.3 gpm 110.9 lpm |
| SCV flow | 8 gpm*Minimum 30.3 lpm |
| 20 gpm*Maximum 75.7 lpm | |
| Tractor hitch | |
| Rear Type | III OptOptional |
| Dimensions & Tires | |
| Wheelbase | 132.5 inches 336 cm |
| Weight | 29605 lbs 13428 kg |
| Front tire | 23.1-34 |
| Rear tire | 23.1-34 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | Delco-Remy alternator |
| Charging amps | 90 |
| Batteries | 4 |
| Battery CCA | 475 |
| Battery volts | 12 |

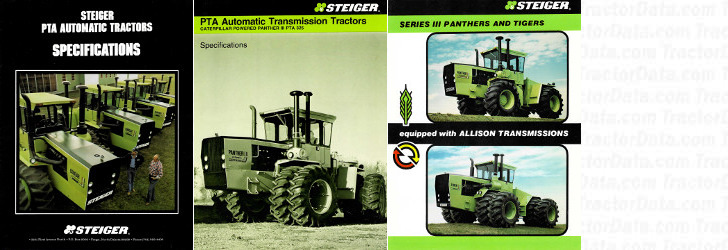

| References | |
 | |
| PTA Automatic Tractors published in 1981, by Steiger | |
| PT Automatic Transmission Tractors - Panther III PTA 325 published in 1979, by Steiger | |
| Series III Panthers and Tigers equipped with Allison Transmissions published in 1979, by Steiger |
