Steiger Cougar III PT-270 Transmission


Steiger Cougar III PT-270 tractor photo
1977 - 1981
III Series
Four-wheel Drive (4WD) tractor
Transmission
Typeconstant mesh
Gears20 forward and 4 reverse
Clutchhydraulic cerametallic dry disc
Oil capacity16 qts*Transmission only
15.1 L
 37 qts*Transmission and transfer case
35.0 L
Five-speed transmission with two ranges and a two-speed transfer case. Tractor must be stopped to shift ranges on transmission or transfer case.

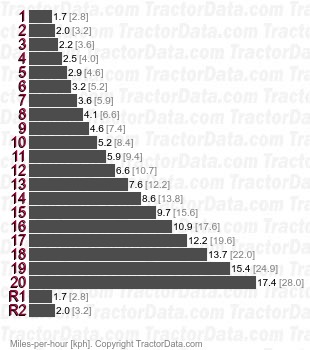

Speeds
With 18.4x34 tires and S-34 axles.
Cougar III PT-270  constant mesh speeds

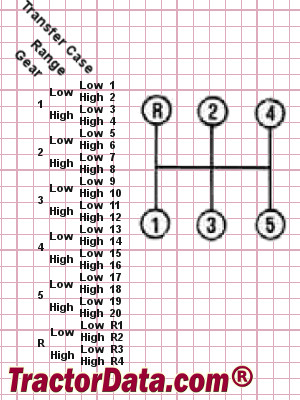

Shift Pattern
Steiger Cougar III PT-270 transmission controls
