Tractors > Steiger > Cougar III PT-250

Steiger Cougar III PT-250 - transmission

No photo available
1979 - 1980   III Series
Four-wheel Drive (4WD) tractor
more Steiger Cougar III PT-250 specifications...






Transmission:

Transmission:Spicer SST 1010
Type:constant mesh
Gears:20 forward and 4 reverse
Clutch:hydraulic cerametallic dry disc
Oil capacity:16 qts [15.1 L] *Transmission only
 37 qts [35.0 L] *Transmission and transfer case

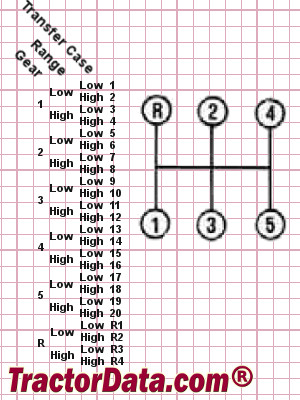

Ten-speed transmission with two-speed transfer case.

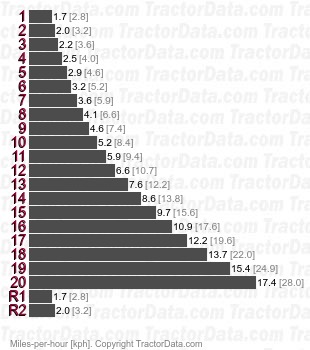

Speeds:With 18.4x34 tires and S-34 axles.
Cougar III PT-250 SST 1010 constant mesh speeds
