Steiger Tiger III ST-450


Steiger Tiger III ST-450 tractor photo
1977 - 1982
Model year
III Series
Four-wheel Drive (4WD) tractor
Production
ManufacturerSteiger
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Steiger Tiger III ST-450 Transmission
6-speed full power shift with torque converter
Transmission details ...
Steiger Tiger III ST-450 Power
Engine470 hp
350.5 kW
Drawbar (tested)369.76 hp
275.7 kW
Performance test details ...
Mechanical
Four-wheel drive
Final drivesplanetary
Articulated power steering
Hydraulic disc brakes
Safari Cab standard with air-conditioning.
Capacity
Fuel385 gal
1457.2 L
Hydraulic system48 gal
181.7 L
Hydraulics
Typeopen center
Capacity48 gal
181.7 L
Pressure2250 psi
155.1 bar
Valves5
Pump flow38 gpm
143.8 lpm
SCV flow25 gpm
94.6 lpm
Dimensions & Tires
Wheelbase150 inches
381 cm
Weight45360 lbs
20575 kg
Front tire30.5x32
Rear tire30.5x32
Full dimensions and tires ...
Tiger III ST-450 Serial Numbers
1977130-00001
1978130-00047
1979130-00097

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps90
Batteries4
Battery CCA625
Battery volts12
References

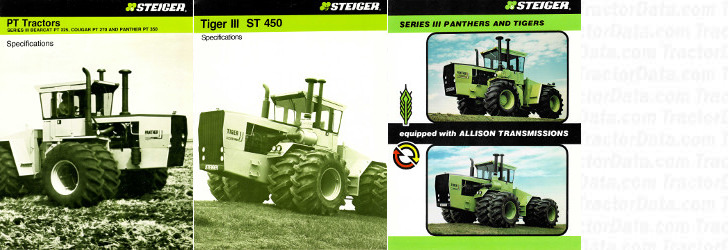

Tiger III ST-450 references literature
Tiger III ST 450 published in 1979, by Steiger
Tiger III ST 450 published in 1979, by Steiger
Series III Panthers and Tigers equipped with Allison Transmissions published in 1979, by Steiger
