Steiger Panther III ST-325 Transmission


Steiger Panther III ST-325 tractor photo
1976 - 1983
III Series
Four-wheel Drive (4WD) tractor
Transmissions overview
10-speed
20-speed
Transmission
Gears:10 forward and 2 reverse
Clutch:hydraulic dry discs
Speeds
Panther III ST-325   speeds
Transmission
Transmission:Dana-Spicer 1010-3B
Gears:20 forward and 4 reverse
Clutch:393.7mm dry disc
Ten-speed transmission with two-speed transfer case.
Speeds

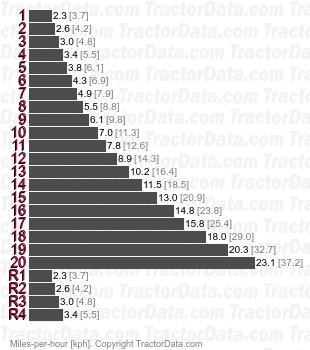

Panther III ST-325 1010-3B  speeds
