Steiger Cougar III ST-270 Transmission


Steiger Cougar III ST-270 tractor photo
1977 - 1981
III Series
Four-wheel Drive (4WD) tractor
Series:Cougar III ST-270
Cougar III ST-280
Transmissions overview
10-speed
20-speed
Transmission
Gears:10 forward and 2 reverse
Clutch:hydraulic dry discs
Speeds
Cougar III ST-270   speeds
Transmission
Transmission:Dana-Spicer 1010-3B
Gears:20 forward and 4 reverse
Clutch:356mm dry disc
Ten-speed transmission with two-speed transfer case.
Speeds

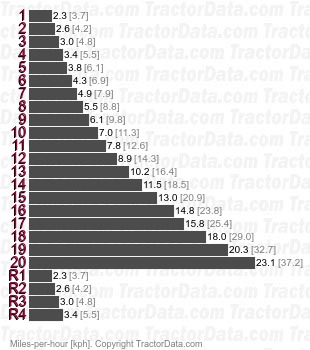

Cougar III ST-270 1010-3B  speeds
