Steiger Cougar III ST-250 Transmission


Steiger Cougar III ST-250 tractor photo
1976 - 1983
III Series
Four-wheel Drive (4WD) tractor
Transmissions overview
10-speed
20-speed
Transmission
Gears:10 forward and 2 reverse
Transmission
Transmission:Dana-Spicer 1010-2A
Gears:20 forward and 4 reverse
Clutch:355.6mm hydraulic dry disc
Ten-speed transmission with two-speed transfer case.

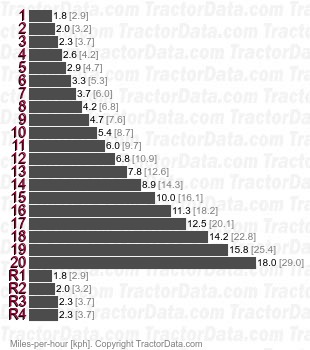

Speeds
Cougar III ST-250 1010-2A  speeds
