Steiger Panther II ST-310

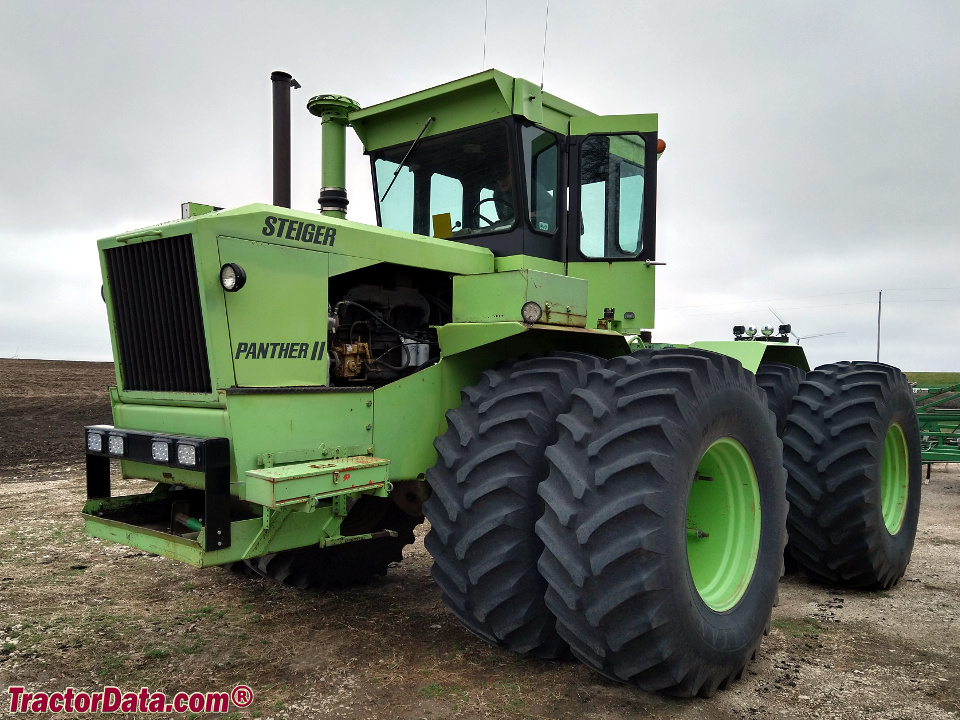

Steiger Panther II ST-310 tractor photo
1974 - 1976
II Series
Four-wheel Drive (4WD) tractor
Series map:
Cougar II ST-300
Panther II ST-310
Turbo Tiger II ST-320
300.0hp
310.0hp
320.0hp
Production
ManufacturerSteiger
Four-wheel Drive (4WD) tractor
Built in Fargo, North Dakota, USA
Steiger Panther II ST-310 Engine
Cummins 14.0L 6-cyl diesel
Fuel tank207 gal
783.5 L
Engine details ...
Steiger Panther II ST-310 Power
Engine310 hp
231.2 kW
Drawbar (claimed)262 hp
195.4 kW
Mechanical
Four-wheel drive
Final drivesoutboard planetary
Articulated power steering
Hydraulic disc brakes
Cab standard with optional heat and air-conditioning.
Hydraulics
Typeopen center
Pressure2000 psi
137.9 bar
Valves3
Pump flow20.6 gpm
78.0 lpm
Steering flow23.5 gpm
88.9 lpm
Steering press.1500 psi
103.4 bar
Tractor hitch
Rear TypeIII OptOptional
Dimensions & Tires
Wheelbase122 inches
309 cm
Weight2100 lbs
952 kg
Front tire24.5-32
Rear tire24.5-32
Full dimensions and tires ...
Panther II ST-310 Serial Numbers
197490001
197590037
197690337

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps54
Batteries2
Battery volts12
References
Panther II ST-310 references literature
Operator's Manual Panther II (37-042) published in 1974*
*Publication contains known errors.
