    Minneapolis-Moline M-602

    Minneapolis-Moline M-602 tractor photo  I&T Manual: Minneapolis-Moline series G, R, U, T, Z, B, Star, M, MF95, MF97
    I&T Shop Manual
    1963 - 1964
    Previous model:Minneapolis-Moline M-5
    Next model:Minneapolis-Moline M-670






    Production:

    Manufacturer:Minneapolis-Moline
    Factory:Minneapolis, Minnesota, USA
    Total built:4,729
     2,957 (gas/LP)
     1,772 (diesel)
    Original price (USD):$5100 (1964)


    Variants:

    M-604:4WD


    Minneapolis-Moline M-602 Engines:

       Minneapolis-Moline 5.5L 4-cyl gasoline
       Minneapolis-Moline 5.5L 4-cyl diesel
       Minneapolis-Moline 5.5L 4-cyl LP gas
    full engine details ...


    Capacity:

    Fuel:22.5 gal [85.2 L] (gasoline/diesel)
     31 gal [117.3 L] (LP gas)


    3-Point Hitch:

    Rear Type:II


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540


    Dimensions & Tires:

    Weight:6200 to 7130 pounds
    Front tire:6.00-16
    Rear tire:15.5-38 (row-crop)
    full dimensions and tires ...


    Minneapolis-Moline M-602 attachments:

     front-end loader
    all M-602 attachments ...


    M-602 Serial Numbers:

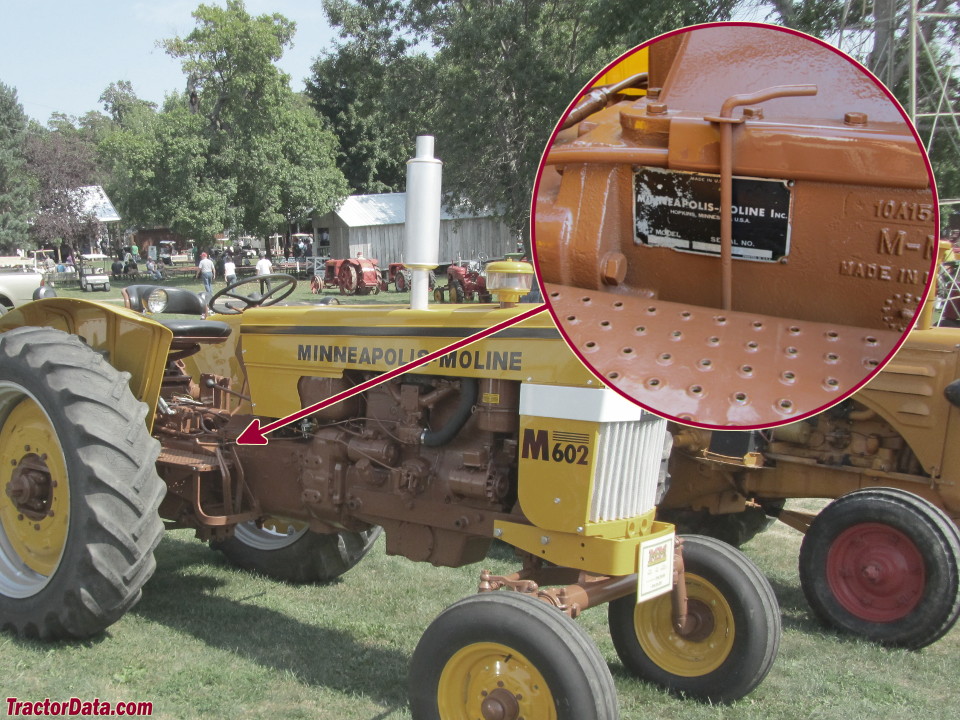

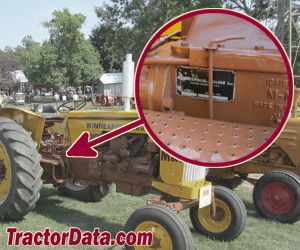

    Location:Right side of tractor frame, near brake pedals.
    photo of M-602 serial number

    1963: 26600001 (gas)
    1964: 26601276 (gas)
    Final: 26602957 (gas)
    1962: 26700001 (diesel)
    1963: 26700743 (diesel)
    Final: 26701772 (diesel)

    how to read serial numbers...



    Minneapolis-Moline M-602 Power:

    PTO (claimed):64 hp [47.7 kW]


    Mechanical:

    Chassis:4x2 2WD
    Steering:power
    Cab:Open operator station.


    Battery:

    Number:1 (gasoline/LP)
     2 (diesel)
    Volts:12
