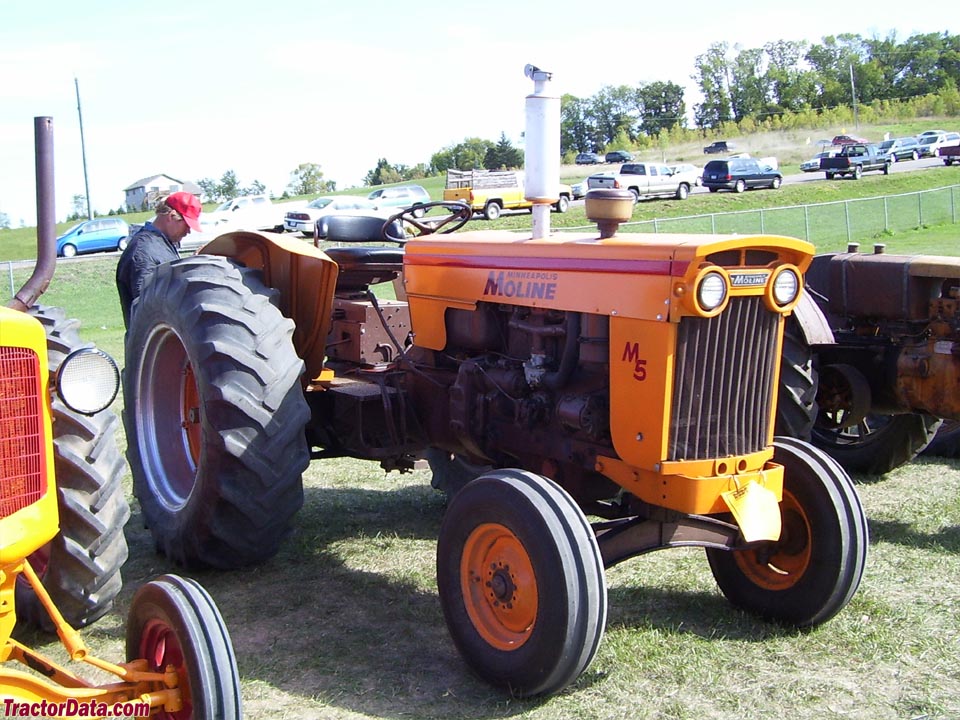

Minneapolis-Moline M-5
|
|
| Production | |
| Manufacturer | Minneapolis-Moline |
| Built in Hopkins, Minnesota, USA | |
| Original price was $4,900 in 1963 | |
| Variants | |
| M-504 | 4WD |
| Minneapolis-Moline M-5 Engines | |
| Minneapolis-Moline 5.5L 4-cyl gasoline | |
| Minneapolis-Moline 5.5L 4-cyl diesel | |
| Minneapolis-Moline 5.5L 4-cyl LP gas | |
 Engine details ... |
| Minneapolis-Moline M-5 Transmission | |
| 10-speed partial power shift | |
 Transmission details ... |
| Minneapolis-Moline M-5 Power | |
| Engine | 69 hp 51.5 kW |
| Drawbar (claimed) | 54 hp 40.3 kW |
| PTO (claimed) | 61 hp 45.5 kW |
| Drawbar (tested) | 54.47 hp 40.6 kW |
| PTO (tested) | 61.26 hp 45.7 kW |
 Performance test details ... | |
| Mechanical | |
| Two-wheel drive | |
| Steering | power assist |
| Differential disc brakes | |
| Open operator station. | |
| Tractor hitch | |
| Rear Type | II |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 |
| Dimensions & Tires | |
| Wheelbase | 101.1 inches 256 cm |
| Weight | 6765 to 6965 pounds |
| Front tire | 6.00-16 |
| Rear tire | 15.5-38 |
 Full dimensions and tires ... | |

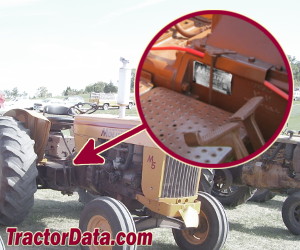

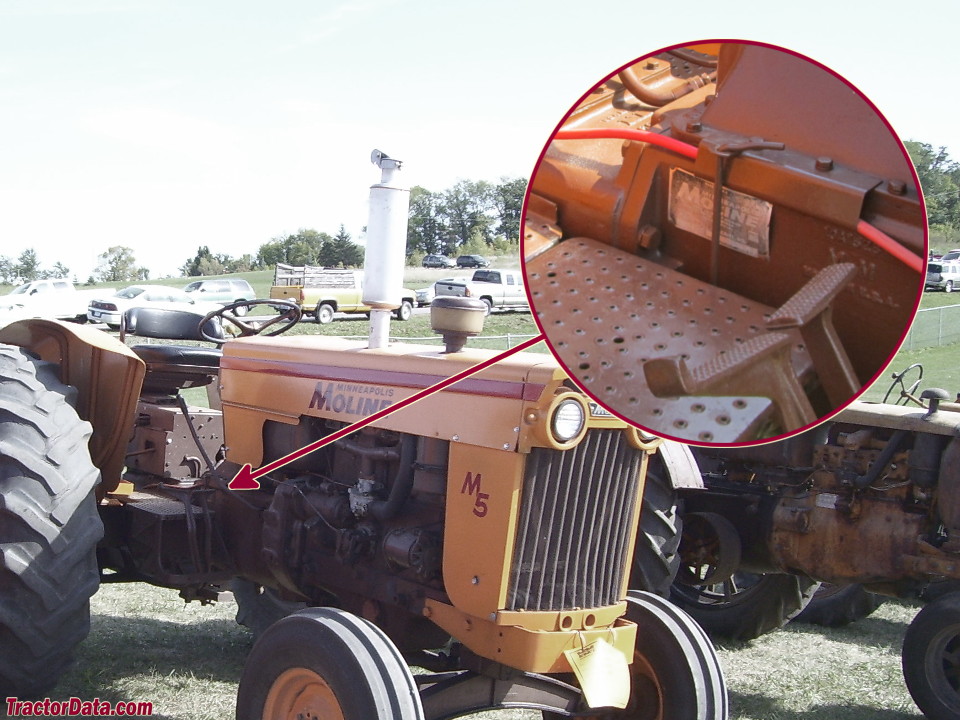

| M-5 Serial Number Location | |
 | |
| Right side of tractor frame, near brake pedals. |
| M-5 Serial Numbers | |
| 1960 | 17100001 (gas) |
| 1961 | 17101536 (gas) |
| 1962 | 17103496 (gas) |
| 1963 | 17104708 (gas) |
| Final | 17105157 (gas) |
| 1960 | 17200001 (diesel) |
| 1961 | 17201041 (diesel) |
| 1962 | 17202000 (diesel) |
| 1963 | 17202507 (diesel) |
| Final | 17202656 (diesel) |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | positive |
| References | |
 | |
| Operator's Manual M5 Gasoline & LP-Gas Tractors (S-266A) published in 1959 | |
| Repair Catalog M5 Tractor (R-2020) published in 1959 |
