    Minneapolis-Moline UB

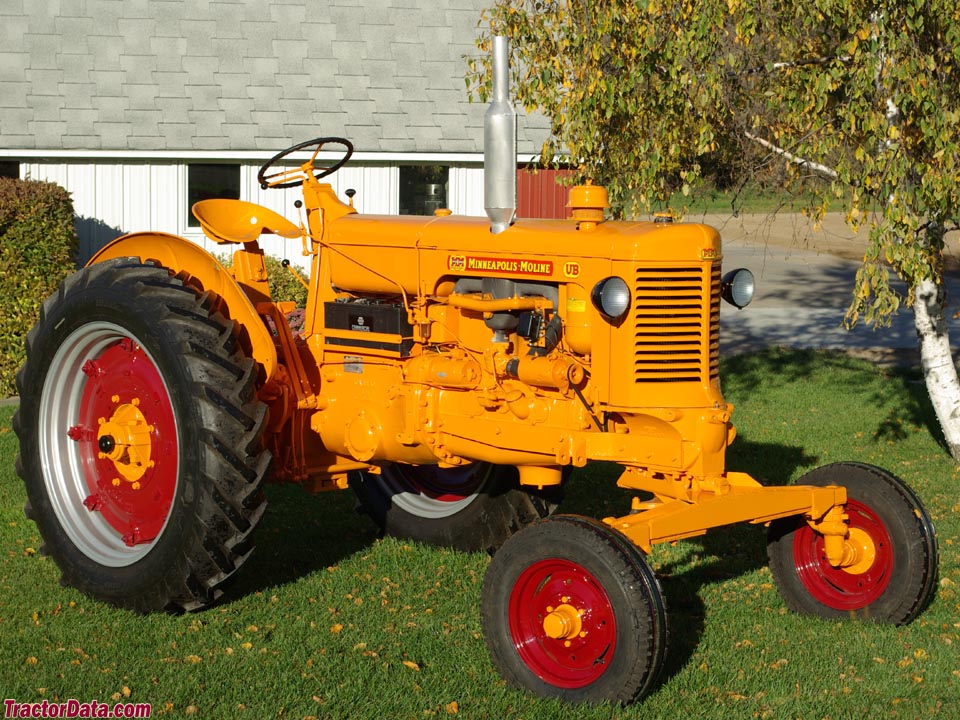

    Minneapolis-Moline UB tractor photo
    1953 - 1955   Model U Series
    Row-Crop tractor






    Production:

    Manufacturer:Minneapolis-Moline
    Factory:Minneapolis, Minnesota, USA
    Original price (USD):$3050 (1957)


    Variants:

    UBU:tricycle-front
    UBE:adjustable wide-front
    UBN:single front wheel


    Minneapolis-Moline UB Engines:

       Minneapolis-Moline 4.6L 4-cyl gasoline
       Minneapolis-Moline 4.6L 4-cyl diesel
       Minneapolis-Moline 4.6L 4-cyl LP gas
    full engine details ...


    Capacity:

    Fuel:12 gal [45.4 L] (gas)
     35 gal [132.5 L] (LP gas)


    Power Take-off (PTO):

    Rear PTO:live
    Rear RPM:540


    Dimensions & Tires:

    Wheelbase:88 inches [223 cm]
    Weight:6,050 lbs [2744 kg]
    Front tire:6.00-16
    Rear tire:13-38
    full dimensions and tires ...


    UB Serial Numbers:

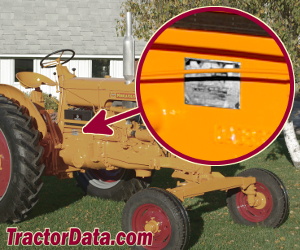

    Location:Right side of tractor frame.

    - Serial numbers unknown -



    Minneapolis-Moline UB Power:

    Drawbar (claimed):34 hp [25.4 kW]
    PTO (claimed):46 hp [34.3 kW]
    Drawbar (tested):44.57 hp [33.2 kW]
    Belt (tested):51.27 hp [38.2 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Brakes:mechanical disc
    Cab:Open operator station.


    Belt Pulley:

    Diameter:16 inches [40 cm]
    Width:7 inches [17 cm]
    RPM:741
    Speed:3,110 ft/min [947.93 meters/min]


    Battery:

    Number:1
    Volts:12
