Tractors > Massey Ferguson > 6170

Massey Ferguson 6170 - transmission

Massey Ferguson 6170 tractor photo
1995 - 1998   6100 Series
Row-Crop tractor
Next model:Massey Ferguson 6270
Series next:Massey Ferguson 6180
Series back:Massey Ferguson 6150
more Massey Ferguson 6170 specifications...



Gears:16 forward and reverse
Clutch:230mm wet disc
Four gears in two ranges with two-speed power shift. Speedshift available with optional creeper range providing 24 total speeds forward and reverse.
Speeds:With 16.9-38 rear tires. Also available in 40 KPH version.

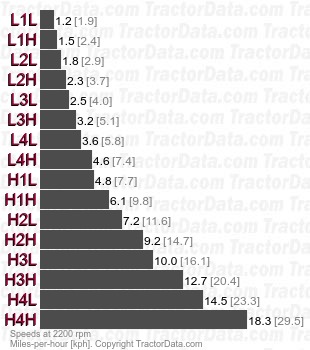

6170 Speedshift synchronized speeds


Type:four-speed power shift
Gears:32 forward and reverse
Clutch:230mm wet disc
Two ranges, each with four power shift gears in four synchronized ranges plus shuttle.
Speeds:With 16.9R38 rear tires.

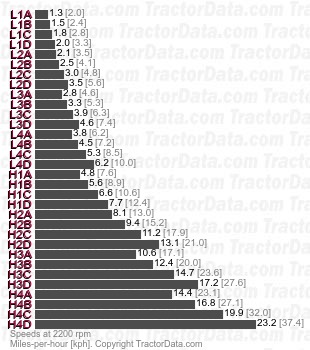

6170 Dynashift four-speed power shift speeds
