| | 1983 - 1987 |
| 3500 Series | | Row-Crop tractor |
|
Series map:
3505
3525
110.0hp
130.0hp
| Transmission |
| Type | partial power shift
|
| Gears | 16 forward and 12 reverse
|
| Four gears (1-4) in two ranges (low/high) plus two-speed push-button power shift. Manual shuttle. Shifts within range are synchronized. |

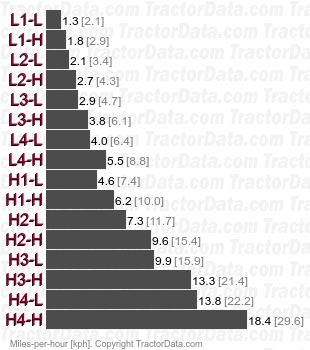

| Speeds |
| With 18.4x38 rear tires. |
|

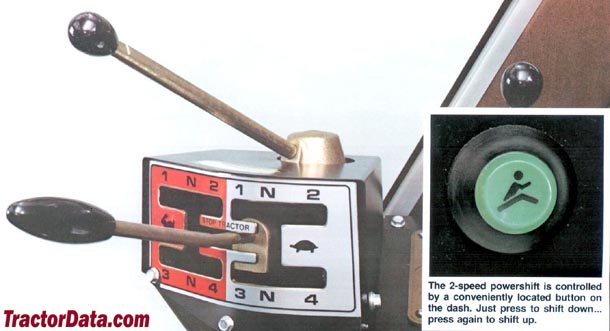

| Shift Pattern |
 |
| Page information |
| Contact: Peter Easterlund |
| Updated on September 17, 2021 |
