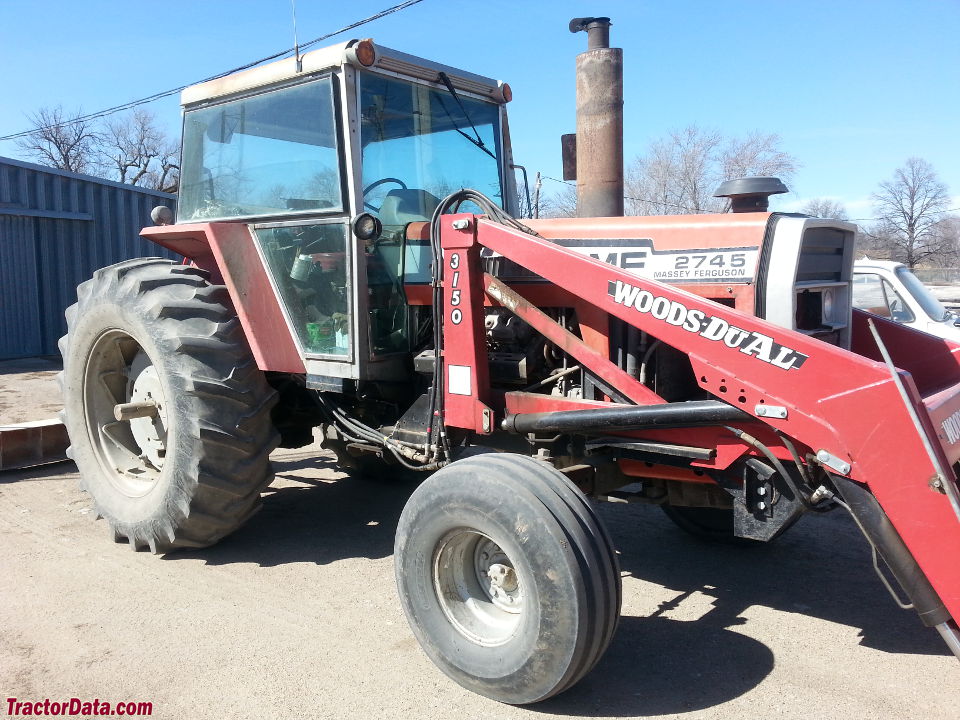

Massey Ferguson 2745
| | 1978 - 1983 |
| 2000 Series | | Row-Crop tractor |
|
| Production |
| Manufacturer: | Massey Ferguson
|
| Type: | Row-Crop tractor
|
| Original price: | $44,500 (1983 )
|
| Massey Ferguson 2745 Power |
| PTO (claimed): | 140 hp
104.4 kW
|
| Drawbar (tested): | 122.28 hp
91.2 kW
|
| PTO (tested): | 143.40 hp
106.9 kW
|
| power test details ... |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Final drives: | planetary
|
| Steering: | hydrostatic power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning. Available platform configuration with four-post ROPS.
|
| Transmissions: | 24-speed 3-speed power shift
|
| | 8-speed mechanical shuttle
|
 Transmission details ... |
| Hydraulics |
| Type: | open center
|
| Valves: | 2 or 3
|
| Pump flow: | 17.1 gpm
64.7 lpm (high-pressure)
|
| | 6.6 gpm
25.0 lpm (low-pressure)
|
| | 17.1 gpm
64.7 lpm (aux. high-pressure)
|
| Steering flow: | 5.7 gpm
21.6 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position control and lower-link draft sensing
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic
|
| Rear RPM: | 540/1000 (1.375)
|
| Engine RPM: | 540@1990
1000@2090
|
| 2745 Serial Numbers |
| Location: | Serial number plate to the left of the tractor's instrument panel.
|
| 1978: | 9R000733
|
| 1979: | 9R003482
|
| 1980: | 9R007282
|
| 1981: | 9R010307
|
| 1982: | 9R013230
|
| 1983: | 9R013525
|
how to read serial numbers...
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 58
|
| Batteries: | 2
|
| Battery volts: | 12
|
