    Massey Ferguson 2705

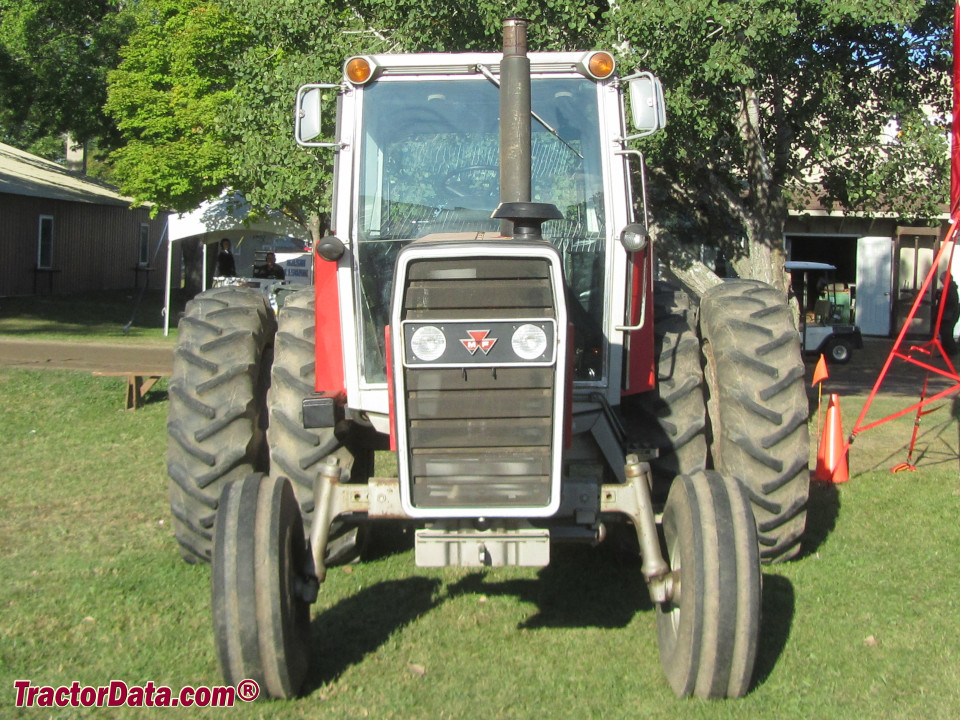

    Massey Ferguson 2705 tractor photo
    1978 - 1983   2000 Series
    Row-Crop tractor
    Previous model:Massey Ferguson 1135
    Series next:Massey Ferguson 2745
    Series back:Massey Ferguson 2675






    Production:

    Manufacturer:Massey Ferguson
    Original price (USD)
       $40,000 (1983 )


    Massey Ferguson 2705 Engine:

       Perkins 5.8L 6-cyl diesel
    full engine details ...


    Capacity:

    Fuel:87 gal [329.3 L]


    3-Point Hitch:

    Rear Type:II
    Control:position control and lower-link draft sensing


    Power Take-off (PTO):

    Rear PTO:independent
    Clutch:hydraulic
    Rear RPM:540/1000 (1.375)
    Engine RPM:540@1990
    1000@2090


    Dimensions & Tires:

    Wheelbase:105.4 inches [267 cm]
    Weight:11200 to 17490 pounds
    Front tire:9.5L-15
    Rear tire:16.9-38
    full dimensions and tires ...


    2705 Serial Numbers:

    Location:Serial number plate to the left of the tractor's instrument panel.
    1978: 9R000733
    1979: 9R003482
    1980: 9R007282
    1981: 9R010307
    1982: 9R013230
    1983: 9R013525

    how to read serial numbers...



    Massey Ferguson 2705 Power:

    PTO (claimed):120 hp [89.5 kW]
    Drawbar (tested):101.44 hp [75.6 kW]
    PTO (tested):122.20 hp [91.1 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Final drives:planetary
    Steering:hydrostatic power
    Brakes:differential hydraulic wet disc
    Cab:Cab standard with air-conditioning. Available platform configuration with four-post ROPS.


    Hydraulics:

    Type:open center
    Valves:2 or 3
    Pump flow:16.5 gpm [62.5 lpm] (high-pressure)
     6.4 gpm [24.2 lpm] (low-pressure)
     16.5 gpm [62.5 lpm] (aux. high-pressure)


    Electrical:

    Ground:negative
    Charging system:alternator
    Charging amps:58


    Battery:

    Number:2
    Volts:12
