Massey Ferguson 1800

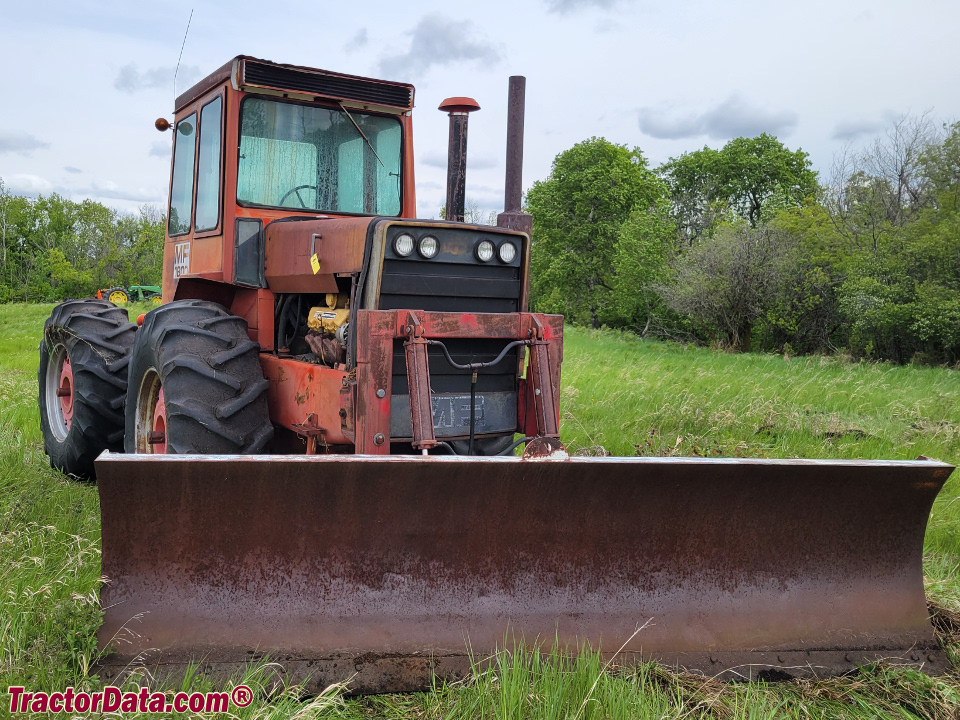

Massey Ferguson 1800 tractor photo
1971 - 1974
Four-wheel Drive (4WD) tractor
Series map:
1500
1800
180.0hp
210.0hp
Production
ManufacturerMassey Ferguson
Four-wheel Drive (4WD) tractor
Built in Des Moines, Iowa, USA
Original price was $21,100 in 1974
Massey Ferguson 1800 Engine
Caterpillar 10.4L 8-cyl diesel
Engine details ...
Massey Ferguson 1800 Power
Engine210 hp
156.6 kW
Drawbar (claimed)180 hp
134.2 kW
Drawbar (tested)171.37 hp
127.8 kW
Performance test details ...
Mechanical
Four-wheel drive
Articulated power steering
Hydraulic internal expanding shoe brakes
Cab standard. Optional heat and air-conditioning.
Photos
No photos of the Massey Ferguson 1800 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel120 gal
454.2 L
Hydraulic system15 gal
56.8 L
Hydraulics
Typeopen center
Capacity15 gal
56.8 L
Valves2 or 3
Pump flow25 gpm
94.6 lpm
Total flow50 gpm
189.3 lpm
Steering flow25 gpm
94.6 lpm
Power Take-off (PTO)
Rear PTOoptional
Rear PTO Type1000
Dimensions & Tires
Wheelbase120 inches
304 cm
Weight17330 lbs
7860 kg
Front tire23.1-30
Rear tire23.1-30
Full dimensions and tires ...
1800 Serial Numbers
Location:Plate on instrument panel.
19749C001007
19759C001912
19769C002463
19779C003184

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps60
Batteries2
Battery volts12
References
1800 references literature
Technical Annual published in 1975, by Power Farming
MF1500/MF1800 Tractors published in 1972, by Massey Ferguson
