Massey Ferguson 1030

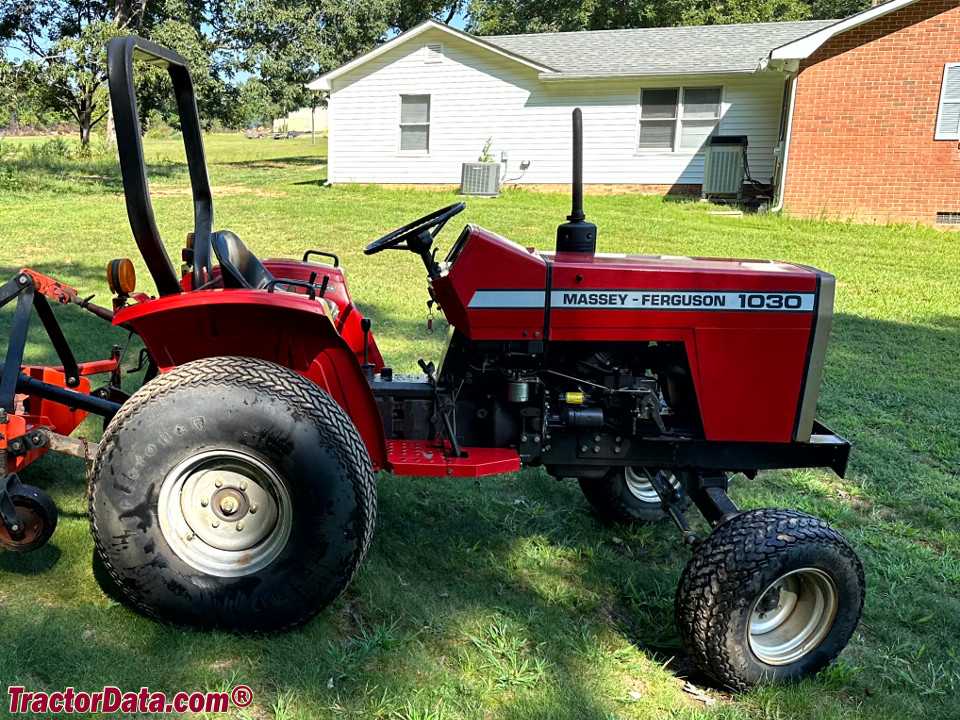

Massey Ferguson 1030 tractor photo
1984 - 1991
1000 Compact Series
Compact Utility tractor
Toyosha built
Series map:
1020
1030
1035
21.0hp
26.0hp
31.0hp
Production
DistributorMassey Ferguson
ManufacturerToyosha
Compact Utility tractor
Original price was $12,000 in 1991
Variants
1030Lindustrial tow tractor
Massey Ferguson 1030 Engine
Toyosha 1.4L 3-cyl diesel
Fuel tank7.8 gal
29.5 L
Engine details ...
Massey Ferguson 1030 Power
Engine26 hp
19.4 kW
PTO (claimed)23 hp
17.2 kW
Drawbar (tested)18.29 hp
13.6 kW
PTO (tested)23.35 hp
17.4 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Steeringmanual (2WD)
 power assist (4WD)
Differential mechanical disc brakes
Open operator station. Two-post ROPS available.
Hydraulics
Typeopen center
Pump flow5.4 gpm
20.4 lpm
Tractor hitch
Rear TypeI
Rear lift (at ends)1729 lbs
784 kg
Power Take-off (PTO)
Rear PTOlive
Rear PTO Type540 (1.375)
Front PTOindependent OptOptional
Clutchelectric
Dimensions & Tires
Wheelbase61.3 inches
155 cm
Weight2398 to 2815 pounds
Front tire5.00x15
Rear tire11.2x24
Full dimensions and tires ...
Massey Ferguson 1030 attachments
72" mid-mount mower deck
blade
front-end loader
backhoe
Attachment details ...

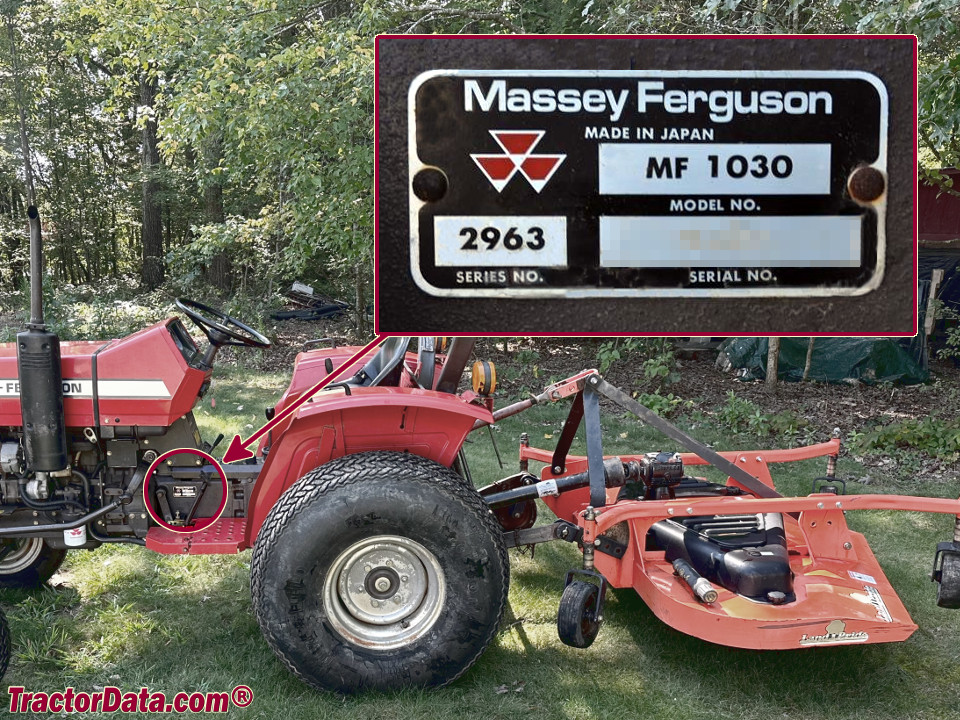

1030 Serial Number Location
Massey Ferguson 1030 serial number location
Serial number plate on the right side of the transmission housing.
1030 Serial Numbers
198400101 (2WD)
198500820 (2WD)
198601501 (2WD)
198702542 (2WD)
198803139 (2WD)
198903285 (2WD)
199003308 (2WD)
199103686 (2WD)
199203917 (2WD)
198440101 (4WD)
198540600 (4WD)
198641245 (4WD)
198742167 (4WD)
198842594 (4WD)
198942953 (4WD)
199043251 (4WD)
199143492 (4WD)
199244024 (4WD)

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery volts12
References
1030 references literature
Loaders - Compact and Agricultural published in 1989, by Massey Ferguson
Compact Tractors published in 1986, by Massey Ferguson
Compact Tractors and Implements published in 1987, by Massey Ferguson
1030 published in 1986, by Massey Ferguson
