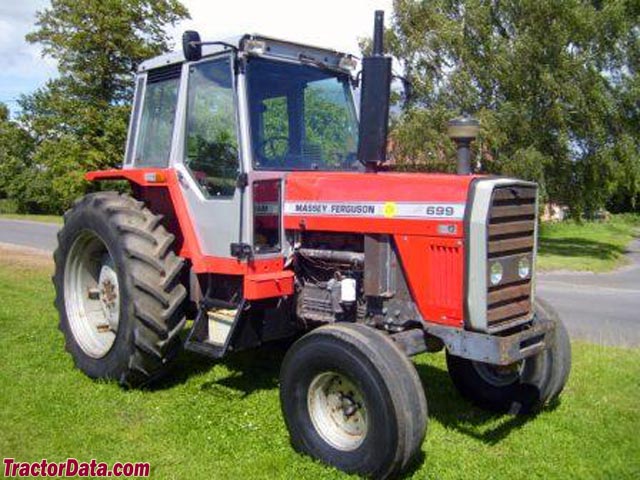

Massey Ferguson 699
| | 1984 - 1986 |
| 600 Series | | Utility tractor |
|
Series map:
698
699
86.7hp*
94.4hp*
*Estimated engine power for comparison only.
| Production |
| Manufacturer | Massey Ferguson
|
| Utility tractor |
| Built in Beauvais, France |
| Original price was $35,000 in 1986 |
| Massey Ferguson 699 Power |
| PTO (claimed) | 85 hp
63.4 kW
|
| Drawbar (tested) | 69.33 hp
51.7 kW
|
| PTO (tested) | 85.79 hp
64.0 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Final drives | planetary
|
| Differential lock | mechanical rear
|
| Power steering |
| Hydraulic wet disc brakes |
| Four-post ROPS. Cab available with air-conditioning. |
| Hydraulics |
| Type | open center
|
| Pressure | 2500 psi
172.4 bar
|
| Valves | 2 or 3
|
| Pump flow | 10 gpm
37.9 lpm
|
| | 7 gpm (hitch pump)
26.5 lpm
|
| Total flow | 17 gpm
64.3 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Rear lift (at 24"/610mm) | 5259 lbs
2385 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000
|
| Engine RPM | 540@1900
|
| | 1000@1900
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 55
|
| Battery volts | 12
|
| References |
 |
| 699 published in 1983, by Massey Ferguson |
| Product Information Manual MF 699 Tractor published in 1984, by Massey Ferguson |
