Tractors > Massey Ferguson > 698

Massey Ferguson 698 - transmission

Massey Ferguson 698 tractor photo
1983 - 1986   600 Series
Utility tractor
Next model:Massey Ferguson 3070
Series next:Massey Ferguson 699
Series back:Massey Ferguson 690T
more Massey Ferguson 698 specifications...






Transmission:

Gears:12 forward and 4 reverse
Clutch:330mm dry disc
Three gears (1-3), plus reverse gear, in two ranges with additional two-range speedshift. Gears 2-3 and the speedshift are synchronized.

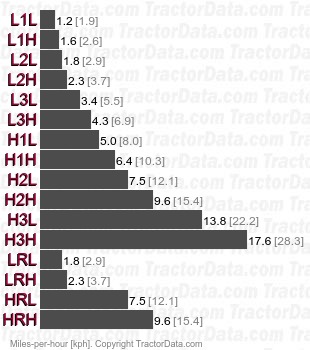

Speeds:With 18.4-34 rear tires.
698   speeds
