Massey Ferguson 690 - transmission

Massey Ferguson 690 tractor photo
1983 - 1986   600 Series
Utility tractor
Next model:Massey Ferguson 3060
Series next:Massey Ferguson 690T
Series back:Massey Ferguson 670
more Massey Ferguson 690 specifications...






Transmission:

Gears:12 forward and 4 reverse
Clutch:304mm dry disc
Three gears (1-3), plus reverse gear, in two ranges with additional two-range speedshift. Gears 2-3 and the speedshift are synchronized.

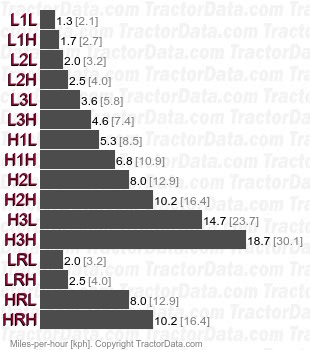

Speeds:With 15.8-38 rear tires.
690   speeds
