Massey Ferguson 690 Tests

Massey Ferguson 690 tractor photo
1983 - 1986
600 Series
Utility tractor
Nebraska Tractor Test 1539

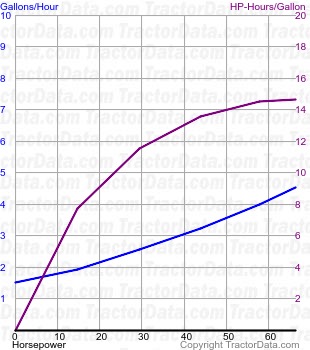

690 fuel use from test 1539
Nebraska Tractor Test 1539
Diesel 12-speed 4WD
September 14 - 25, 1984
Link: Nebraska Tractor Test 1539 file
PTO performance
Power at rated engine speed:65.68 hp
49.0 kW
Fuel use:4.5 gal/hour
17.0 l/hour
Power at rated PTO speed:62.25 hp
46.4 kW
Fuel use:4.0 gal/hour
15.1 l/hour
Drawbar performance
Max power:52.38 hp
39.1 kW
Fuel use:4.4 gal/hour
16.7 l/hour
Gear 7 used for power test.
Max pull:7,650 lbs
3470 kg
Gear 1LH used for pull test.
