Massey Ferguson 670
| | 1983 - 1986 |
| 600 Series | | Utility tractor |
|
Series map:
670
690
62.2hp*
80.0hp
| Production |
| Manufacturer | Massey Ferguson
|
| Utility tractor |
| Built in Beauvais, France |
| Original price was $26,000 in 1986 |
| Massey Ferguson 670 Power |
| Drawbar (claimed) | 46 hp
34.3 kW
|
| PTO (claimed) | 56 hp
41.8 kW
|
| Drawbar (tested) | 46.28 hp
34.5 kW
|
| PTO (tested) | 55.62 hp
41.5 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Final drives | outboard planetary
|
| Differential lock | mechanical rear
|
| Power steering |
| Hydraulic wet disc brakes |
| Cab standard with available air-conditioning. |
| Hydraulics |
| Type | open center
|
| Valves | 2 or 3
|
| Pump flow | 10 gpm (implement)
37.9 lpm
|
| | 7 gpm (hitch)
26.5 lpm
|
| Total flow | 17 gpm
64.3 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position and draft control
|
| Rear lift (at 24"/610mm) | 4440 lbs
2013 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | hydraulic
|
| Rear PTO Type | 540/1000 (1.375)
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|

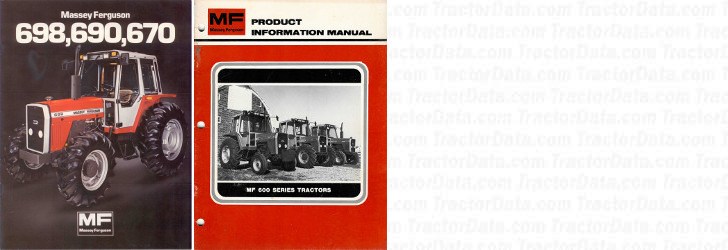

| References |
 |
| 698,690,670 published in 1984, by Massey Ferguson |
| Product Information Manual MF 600 Series Tractors published in 1983, by Massey Ferguson |
