    Massey-Harris 333

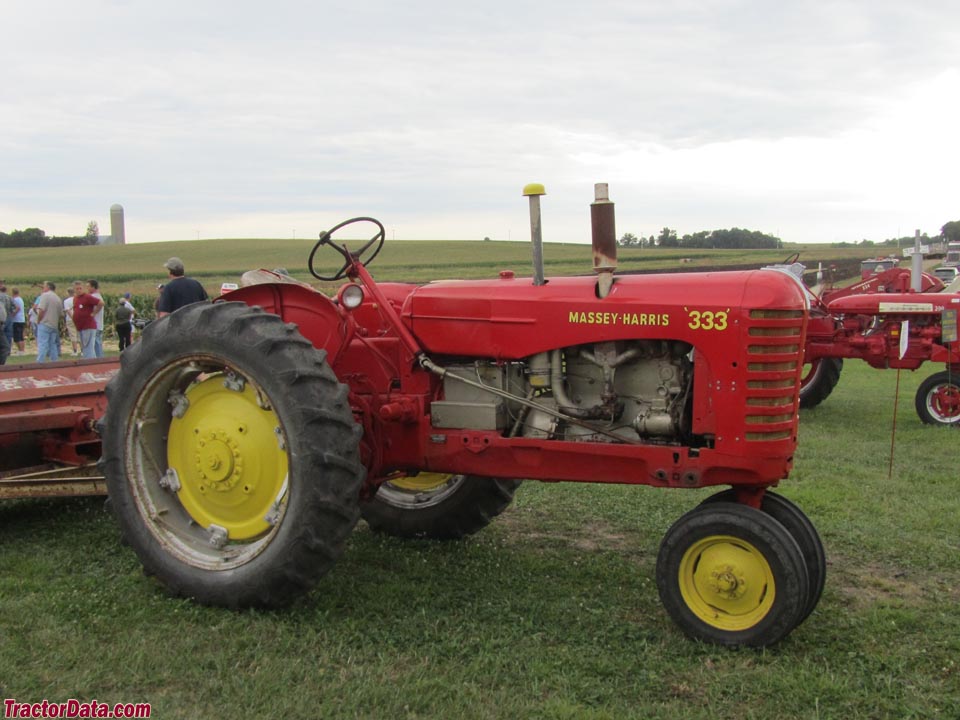

    Massey-Harris 333 tractor photo  I&T Manual: Massey 303, 333, 404, 406, 444, 1001
    I&T Shop Manual
    1956 - 1958
    Row-Crop tractor
    Previous model:Massey-Harris 33






    Production:

    Manufacturer:Massey-Harris
    Factory:Racine, Wisconsin, USA
    Total built:2,748
    Original price (USD):$3,000 (1958)


    Massey-Harris 333 Engines:

       Continental 3.4L 4-cyl gasoline
       Continental 3.4L 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:27 gal [102.2 L]


    3-Point Hitch:

    Rear Type:I


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540


    Dimensions & Tires:

    Wheelbase:88.1 inches [223 cm]
    Weight:6000 to 7935 pounds
    Front tire:6.50-16
    Rear tire:11-38
    full dimensions and tires ...

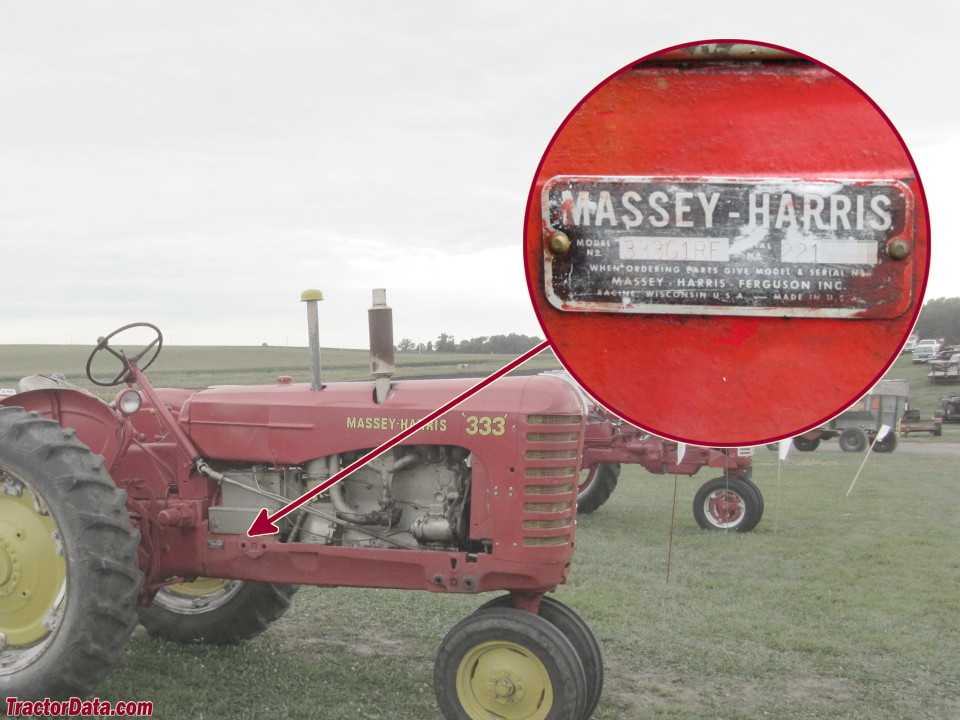

    333 Serial Numbers:

    Location:Right side of tractor frame.

    - Serial numbers unknown -



    Massey-Harris 333 Power:

    Drawbar (claimed):27 hp [20.1 kW]
    PTO (claimed):37 hp [27.6 kW]
    Drawbar (tested):37.26 hp [27.8 kW]
    Belt (tested):41.89 hp [31.2 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
     power optional
    Brakes:mechanical expanding shoe
    Cab:Open operator station.


    Belt Pulley:

    Diameter:13.5 inches [34 cm]
    Width:6.5 inches [16 cm]
    RPMs:876
    Speed:3,097 ft/min [943.97 meters/min]


    Battery:

    Number:1
    Volts:12


    Page information:

    Last update:March 3, 2013
