Massey Ferguson 283

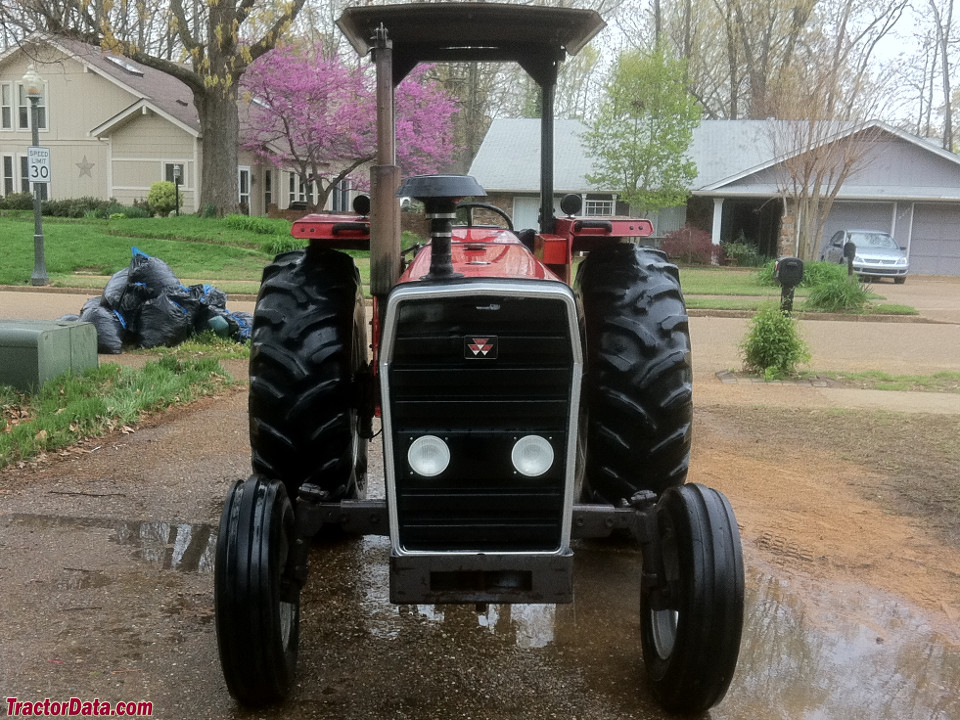

Massey Ferguson 283 tractor photo
1985 - 1999
200 Series
Utility tractor
Production
Manufacturer:Massey Ferguson
Type:Utility tractor
Factories:Coventry, England
 Brazil
Original price:$21,000 (1997)
Massey Ferguson 283 Power
Engine:89 hp
66.4 kW
PTO (claimed):67 hp
50.0 kW
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:wet disc
Cab:Two-post ROPS.
Transmission:8-speed sliding gear
Transmission details ...
Capacity
Fuel:21.7 gal
82.1 L
Hydraulic system:10.8 gal
40.9 L
Hydraulics
Type:open center
Capacity:10.8 gal
40.9 L
Tractor hitch
Rear Type:II
Control:position and draft control
Power Take-off (PTO)
Rear PTO:live (two-stage clutch)
Rear RPM:540
Dimensions & Tires
Wheelbase:84.3 inches
214 cm
Weight:5,432 lbs
2463 kg
Front tire:7.50-16
Rear tire:18.4-30
Full dimensions and tires ...
283 Serial Numbers
Location:Serial number plate on the dashboard panel of the Massey Ferguson 283.
1988:N01001 (UK)
1989:P01001 (UK)
1990:R01001 (UK)
1991:S01001 (UK)
1992:A01001 (UK)
1993:B01001 (UK)
1994:C01001 (UK)
1995:D01001 (UK)
1996:E01001 (UK)
1997:F01001 (UK)
1998:G01001 (UK)
1999:H01001 (UK)
1988:5469?????? (Brazil)

how to read serial numbers...

Electrical
Ground:negative
Battery volts:12
