    Massey Ferguson 275

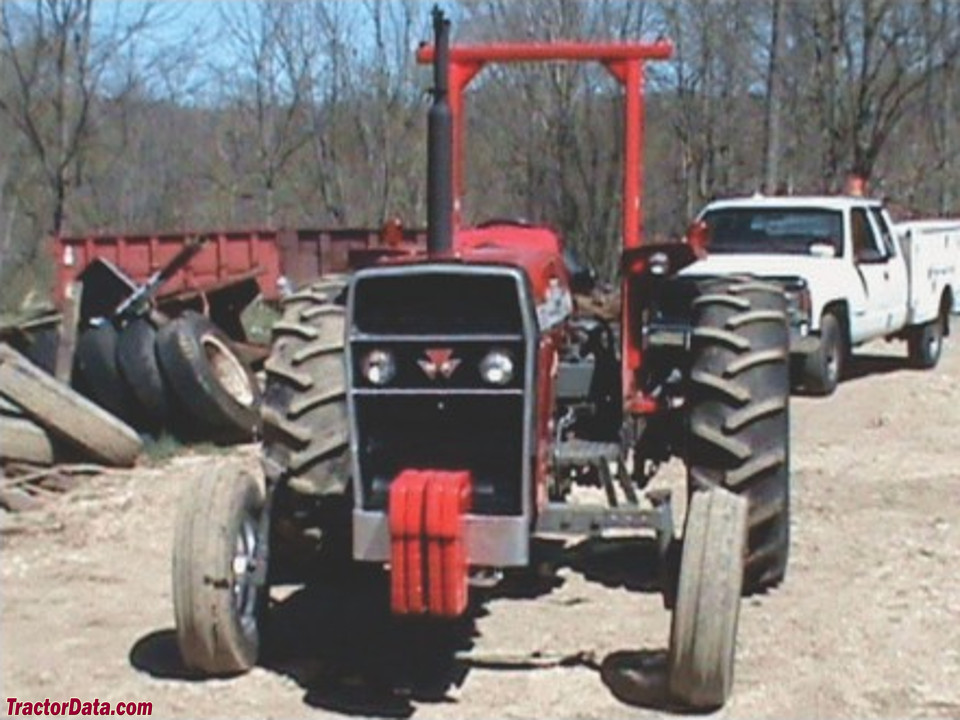

    Massey Ferguson 275 tractor photo
    1975 - 1983
    Previous model:Massey Ferguson 175
    Next model:Massey Ferguson 290
    Series back:Massey Ferguson 265



    Manufacturer:Massey Ferguson
    Original price (USD)
       $21,000 (1983 )

    Massey Ferguson 275 Engine:

       Perkins 4.1L 4-cyl diesel
    full engine details ...


    Fuel:18.5 gal [70.0 L]
    Hydraulic system:8 gal [30.3 L]

    3-Point Hitch:

    Rear Type:II
    Rear lift:4100 lbs [1859 kg]

    Power Take-off (PTO):

    Rear PTO:live*Two-stage clutch
    Rear RPM:540

    Dimensions & Tires:

    Wheelbase:82 inches [208 cm]
    Weight:6100 to 9330 pounds
    Front tire:6.00-16
    Rear tire:16.9-24
    full dimensions and tires ...

    275 Serial Numbers:

    1975: 9A207681
    1976: 9A232539
    1977: 9A257837
    1978: 9A280301
    1979: 9A300200
    1980: 9A326169
    1981: 9A339343
    1982: 9A350584
    1983: 9A354679

    how to read serial numbers...


    Massey Ferguson 275 Power:

    Drawbar (claimed):60 hp [44.7 kW]
    PTO (claimed):67 hp [50.0 kW]
    Drawbar (tested):59.73 hp [44.5 kW]
    PTO (tested):67.43 hp [50.3 kW]
    power test details ...


    Chassis:4x2 2WD
    Differential lock:foot-pedal
    Steering:hydrostatic power
    Brakes:differential mechanical dry discs
    Cab:Two-post ROPS, canopy optional.


    Capacity:8 gal [30.3 L]
    Pressure:2300 psi [158.6 bar]
    Valves:0 to 2
    Pump flow:10 gpm [37.9 lpm]
     4.5 gpm [17.0 lpm] (3-point)
    Total flow:19.5 gpm [73.8 lpm]
    Steering flow:5 gpm [18.9 lpm]


    Charging system:alternator
    Charging amps:37
