| | 1975 - 1983 |
| 200 Series | | Row-Crop tractor |
|
Series map:
265
275
285
66.7hp*
74.4hp*
90.0hp*
*Estimated engine power for comparison only.
| Transmission options |
| 8-speed gear |
| 12-speed partial power shift |
| Transmission |
| Type | gear
|
| Gears | 8 forward and 2 reverse
|
| Four speeds, plus reverse, with high and low ranges. |
| Speeds |
| With 16.9-28 rear tires. |
|

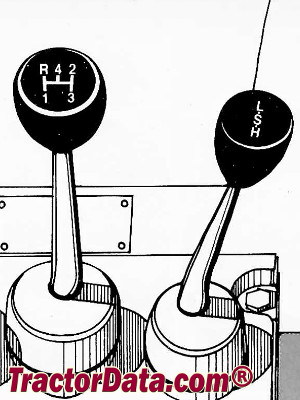

| Shift Pattern |
 |
| Transmission |
| Transmission | Multi-Power
|
| Type | partial power shift
|
| Gears | 12 forward and 4 reverse
|
| Three speeds in two ranges plus two-speed power shift. |

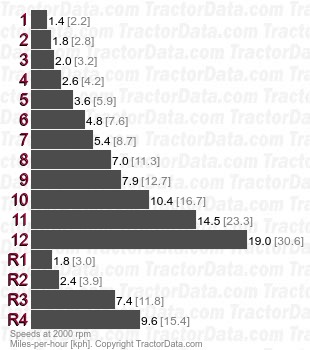

| Speeds |
| With 16.9-28 rear tires. |
|

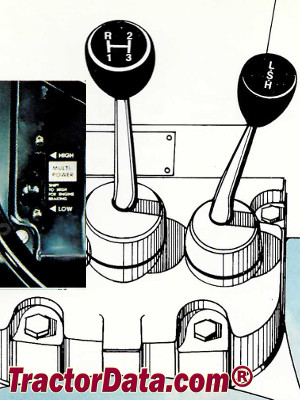

| Shift Pattern |
 |
