    Massey Ferguson 180 - engine

    Massey Ferguson 180 tractor photo
    1964 - 1975
    Series back:Massey Ferguson 175
    more Massey Ferguson 180 specifications...






    Engine Detail:

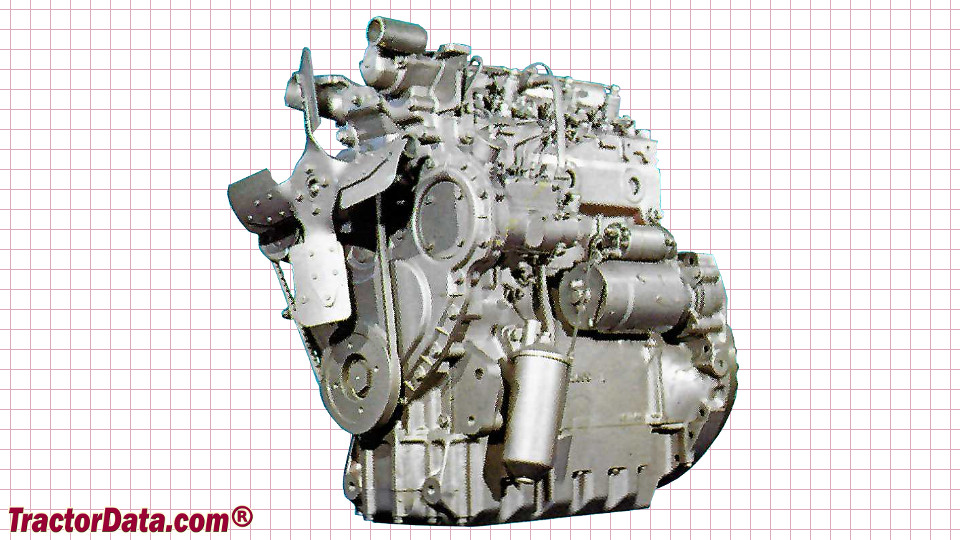

     Perkins A4.236
     diesel
     4-cylinder 8-valve
     liquid-cooled
     236 ci [3.9 L]
    Bore/Stroke:3.875x5.00 inches [98 x 127 mm]
    Air cleaner:paper element
    Compression:16:1
    Rated RPM:2000
    Starter volts:12
    Oil capacity:8.5 qts [8.0 L]


    Engine Detail:

    The Perkins AG4.236 became the gasoline engine option in 1969.
     Perkins AG4.236
     gasoline
     4-cylinder 8-valve
     liquid-cooled
     236 ci [3.9 L]
    Bore/Stroke:3.875x5.00 inches [98 x 127 mm]
    Air cleaner:dry
    Compression:7:1
    Rated RPM:2000
    Starter volts:12


    Engine Detail:

    The G206 was used in the Massey Ferguson 175 from 1964 to 1968.

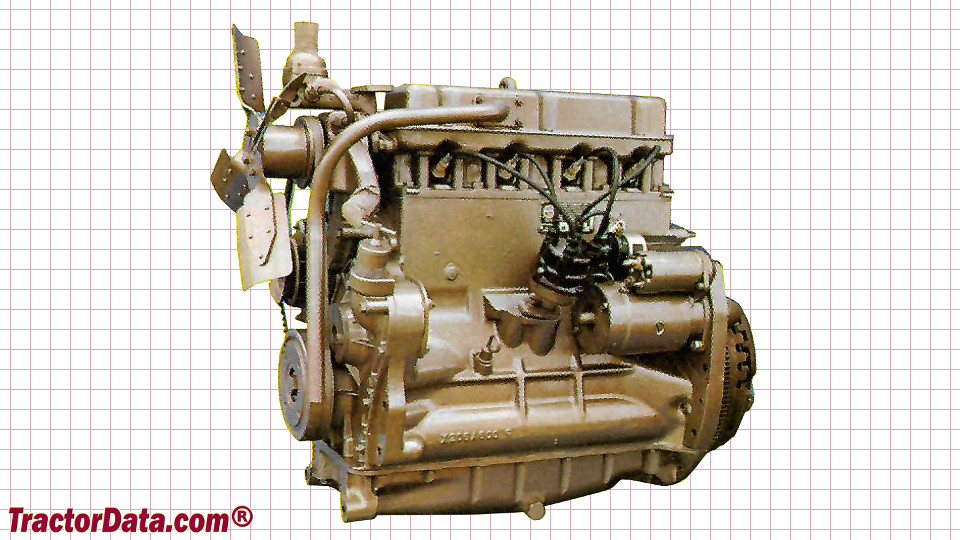

     Continental G206
     gasoline
     4-cylinder 8-valve
     liquid-cooled
     206 ci [3.4 L]
