Massey Ferguson 174S Transmission


Massey Ferguson 174S tractor photo
1986 - 1989
Orchard/Vineyard tractor
Series map:
154S
174S
194F
46.7hp*
63.3hp*
75.6hp*
*Estimated engine power for comparison only.
Transmissions overview
12-speed partially synchronized
20-speed creeper
Transmission
Typepartially synchronized
Gears12 forward and 4 reverse
Clutch279.4mm dry disc
Oil capacity40 qts
37.9 L
Four synchronized gears in three ranges, plus reverse range.

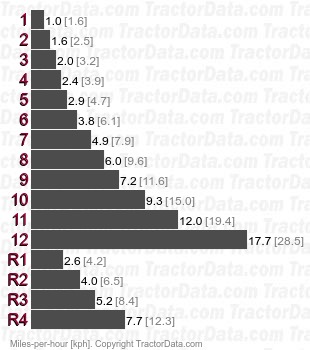

Speeds
With 14.9-24 rear tires.
174S  partially synchronized speeds
Transmission
Typecreeper
Gears20 forward and 8 reverse
Clutchdry disc
