    Massey-Harris 101 Super

    Massey-Harris 101 Super tractor photo
    1938 - 1942
    Row-Crop tractor
    Next model:Massey-Harris 101 Senior





    The Massey-Harris 101 Super was originally released as simply the 101. When the 101 Junior was released in 1939, this tractor was named the 101 Super. It was one of the first production tractors to have electric starting as a standard feature. The 101 Super was followed by the 101 Senior, which used a Continental engine.


    Production:

    Manufacturer:Massey-Harris
    Total built:8,647
    Original price (USD):$1,700 (1946)


    Variants:

    101S:standard
    101R:row-crop


    Massey-Harris 101 Super Engines:

       Chrysler 3.3L 6-cyl gasoline
       Chrysler 3.6L 6-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:15 gal [56.8 L]


    Power Take-off (PTO):

    Rear RPM:540


    Dimensions & Tires:

    Weight:3865 lbs [1753 kg]
    Front tire:5.00-15
    Rear tire:11-38
    full dimensions and tires ...


    101 Super Serial Numbers:

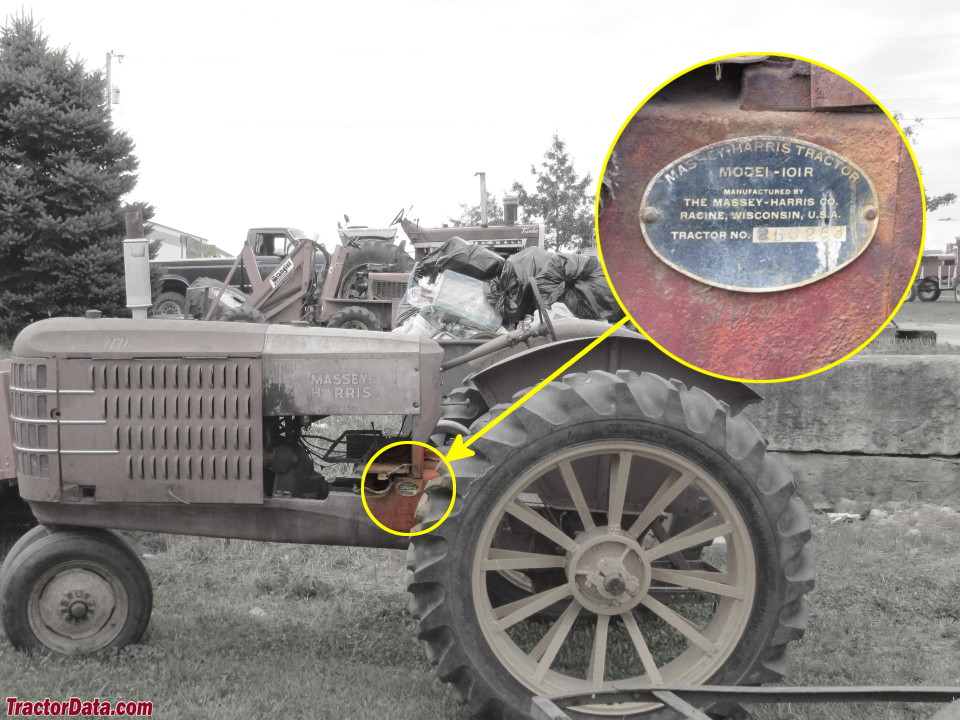

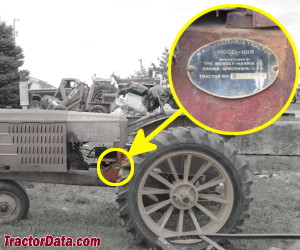

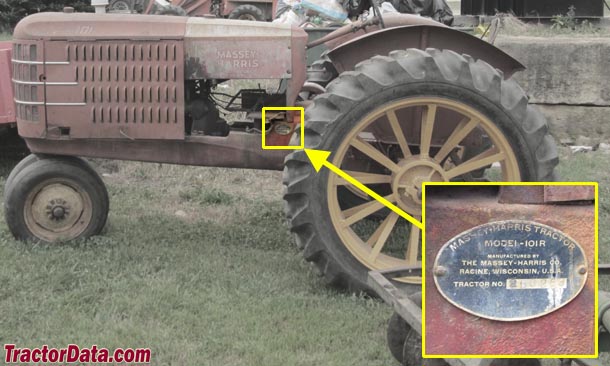

    Location:On frame, rear-left side near transmission case
    photo of 101 Super serial number

    1938: 255001
    1939: 256085
    1940: 257281
    1941: 258769
    1942: 259762

    how to read serial numbers...



    Massey-Harris 101 Super Power:

    Drawbar (claimed):24 hp [17.9 kW] (early)
     28 hp [20.9 kW] (late)
    PTO (claimed):36 hp [26.8 kW] (early)
     41 hp [30.6 kW] (late)
    Drawbar (tested):34.63 hp [25.8 kW]
    Belt (tested):46.97 hp [35.0 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Brakes:mechanical internal expanding
    Cab:Open operator station.


    Belt Pulley:

    Diameter:13.25 inches [33 cm]
    Width:6.25 inches [15 cm]
    RPM:833


    Battery:

    Number:1
    Volts:6
