Massey Ferguson 97

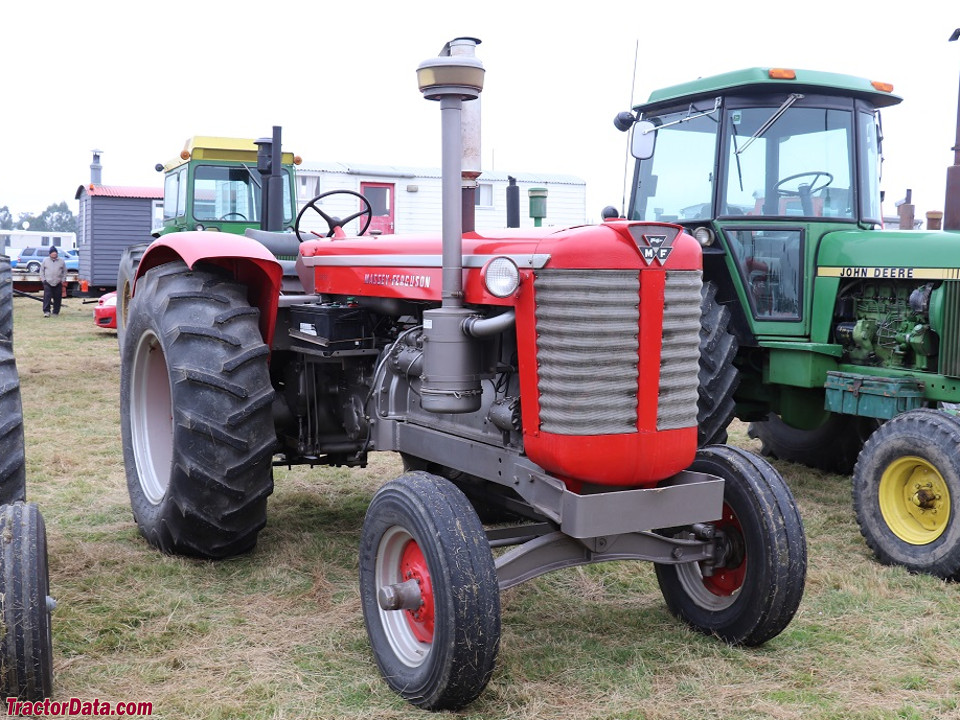

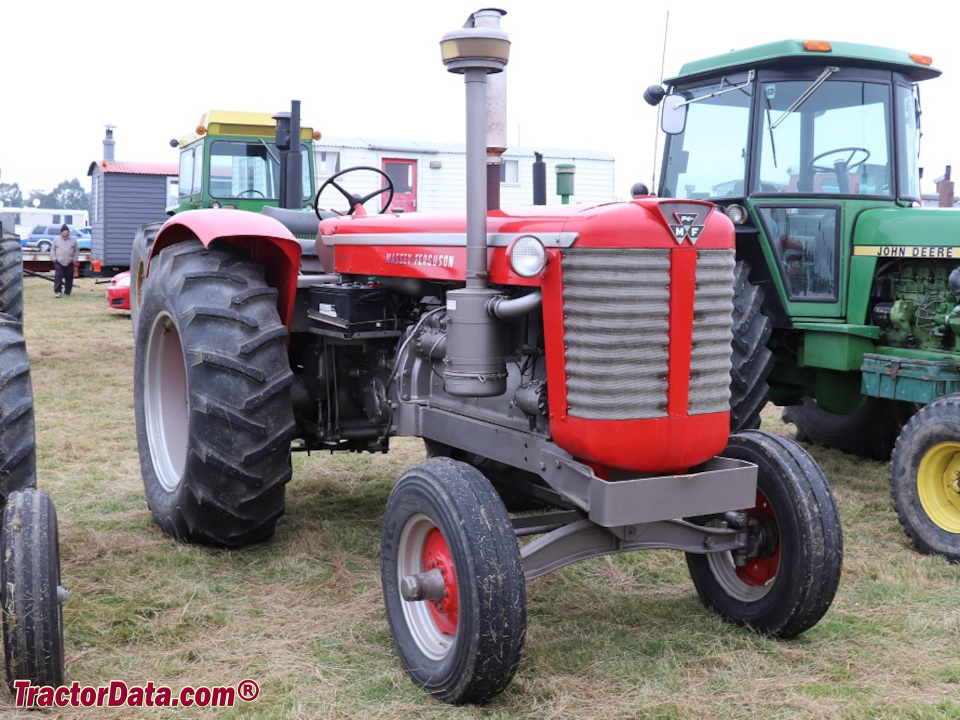

Massey Ferguson 97 tractor photo
1962 - 1965
Standard-tread tractor
Minneapolis-Moline built
Production
DistributorMassey Ferguson
ManufacturerMinneapolis-Moline
Standard-tread tractor
Original price was $6943 in 1964
Variants
G705similar Minneapolis-Moline model
G706similar Minneapolis-Moline model
Massey Ferguson 97 Engines
Minneapolis-Moline 8.3L 6-cyl diesel
Minneapolis-Moline 8.3L 6-cyl LP gas
Fuel tank38 gal
143.8 L
Engine details ...
Massey Ferguson 97 Power
Engine112 hp
83.5 kW
PTO (claimed)101 hp
75.3 kW
Plows7
Mechanical
Two- or four-wheel drive
Final drivesbull gear
Power steering
Disc brakes
Cab optional.
Hydraulics
Typeopen center
Pressure1000 psi
69.0 bar
Valves2
Pump flow15 gpm
56.8 lpm
Power Take-off (PTO)
Rear PTOtransmission
 live OptOptional
Rear PTO Type540 (1.375)
Engine RPM540@1200
Dimensions & Tires
2WD Wheelbase96.2 inches
244 cm
4WD Wheelbase84.5 inches
214 cm
Weight8,155 lbs
3699 kg
Front tire9.5-24
Rear tire18.4-34
Full dimensions and tires ...
97 Serial Number Location

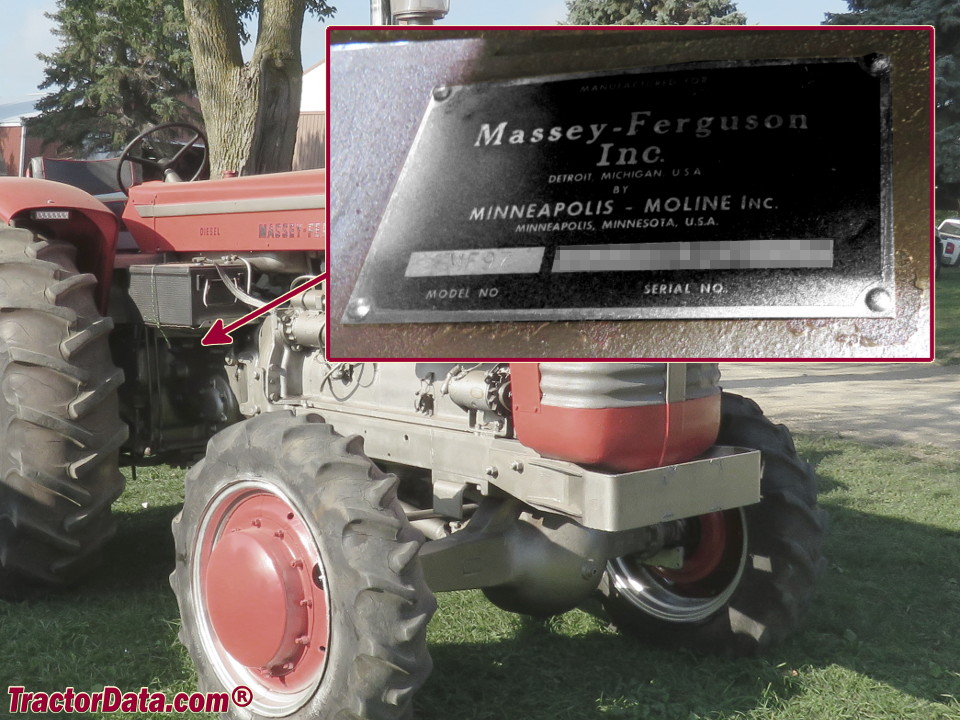

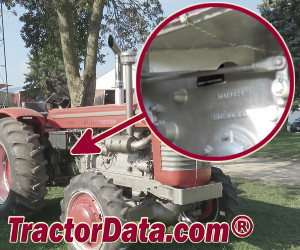

Massey Ferguson 97 serial number location
Serial number plate on the right side of the transmission housing, under the battery tray.
97 Serial Numbers
196225200001 (diesel)
196325200506 (diesel)
196425202005 (diesel)
196525203504 (diesel)
196225300001 (LP-gas)
196325300096 (LP-gas)
196425300397 (LP-gas)
196525300399 (LP-gas)

FAQ: How to read a serial number table.
References
97 references literature
MF97 Tractor published in 1975, by Massey Ferguson
