Massey-Harris 55
| | 1946 - 1955 |
| Standard-tread tractor |
|
| Production |
| Manufacturer: | Massey-Harris
|
| Type: | Standard-tread tractor
|
| Original price: | $3,850 (1955 )
|
| Variants |
| 55K: | all-fuel engine
|
| 55D: | diesel engine
|
| Western: | wide-tread
|
| Massey-Harris 55 Power |
| Drawbar (claimed): | 41 hp
30.6 kW
|
| PTO (claimed): | 56 hp
41.8 kW
|
| Plows: | 5
|
| Drawbar (tested): | 57.55 hp
42.9 kW
|
| Belt (tested): | 66.91 hp
49.9 kW
|
| power test details ... |
| Mechanical |
| Chassis: | 4x2 2WD
|
| Steering: | manual
|
| Brakes: | differential mechanical expanding shoe
|
| Cab: | Open operator station.
|
| Transmission: | 4-speed gear
|
 Transmission details ... |
| Capacity |
| Fuel: | 27.5 gal
104.1 L
|
| Hydraulic system: | 3.5 gal
13.2 L
|
| Hydraulics |
| Capacity: | 3.5 gal
13.2 L
|
| Total flow: | 10 gpm
37.9 lpm
|
| Power Take-off (PTO) |
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 521@1350
|
| 55 Serial Numbers |

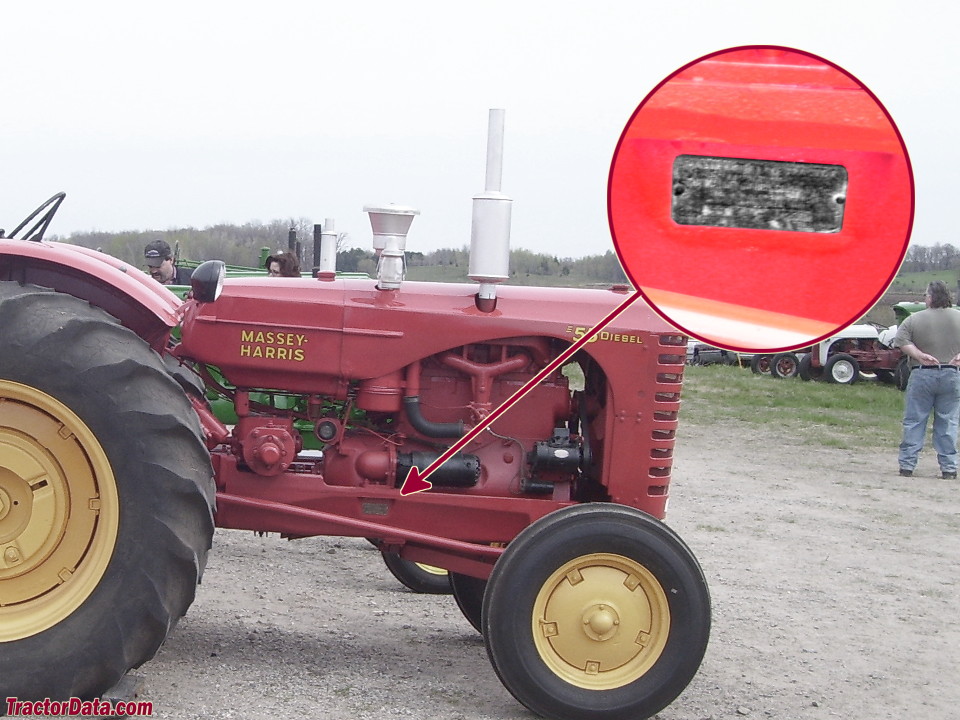

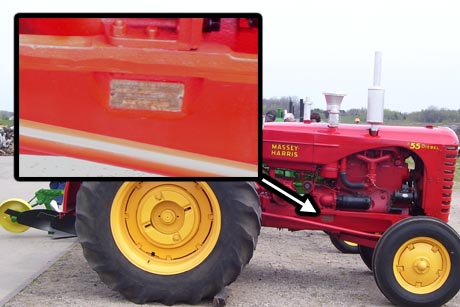

| Location: | On side of tractor frame.
|
photo of 55 serial number
|
| 1946: | 1001 (gasoline)
|
| 1947: | 1116 (gasoline)
|
| 1948: | 2132 (gasoline)
|
| 1949: | 3581 (gasoline)
|
| 1950: | 5468 (gasoline)
|
| 1951: | 6399 (gasoline)
|
| 1952: | 10001 (gasoline)
|
| 1953: | 13017 (gasoline)
|
| 1954: | 15299 (gasoline)
|
| 1955: | 17059 (gasoline)
|
| 1946: | 1001 (all-fuel)
|
| 1947: | 1013 (all-fuel)
|
| 1948: | 1554 (all-fuel)
|
| 1949: | 3033 (all-fuel)
|
| 1950: | 4078 (all-fuel)
|
| 1951: | 4808 (all-fuel)
|
| 1952: | 5503/10001 (all-fuel)
|
| 1953: | 13017 (all-fuel)
|
| 1954: | 15299 (all-fuel)
|
| 1955: | 17059 (all-fuel)
|
| 1949: | 1001 (diesel)
|
| 1950: | 1022 (diesel)
|
| 1951: | 2058 (diesel)
|
| 1952: | 2822/10001 (diesel)
|
| 1953: | 13017 (diesel)
|
| 1954: | 15299 (diesel)
|
| 1955: | 17059 (diesel)
|
how to read serial numbers...
|
