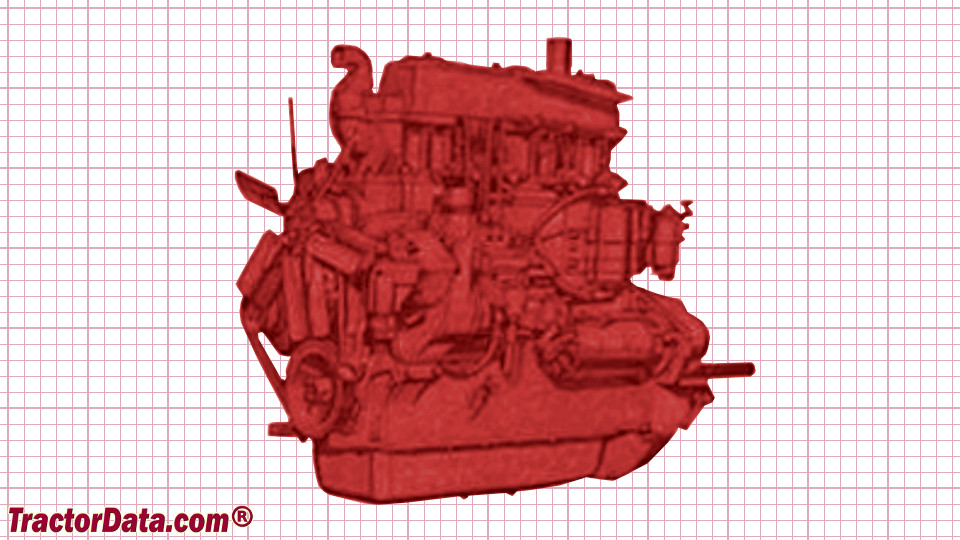

Massey-Harris 44 Row-Crop Engine


Massey-Harris 44 Row-Crop tractor photo
1947 - 1953
Row-Crop tractor
Series:44 Row-Crop
44 Special
Engines overview
Continental 4.3L 4-cyl gasoline
Continental 4.3L 4-cyl diesel
Massey-Harris 4.3L 4-cyl tractor fuel
Massey-Harris 4.3L 4-cyl LP gas
Engine Detail
Continental
gasoline
4-cylinder
liquid-cooled vertical I-head
Displacement:259.4 ci
4.3 L
Bore/Stroke:3.875x5.50 inches
98 x 140 mm
Power:45 hp
33.6 kW
Fuel system:Zenith carburetor
Air cleaner:oil bath
Compression:5.65:1
Rated RPM:1350
Starter volts:6
Oil capacity:8 qts
7.6 L
Coolant capacity:23 qts
21.8 L
Engine Detail
Continental
diesel
4-cylinder
liquid-cooled vertical I-head
Displacement:259.4 ci
4.3 L
Bore/Stroke:3.875x5.50 inches
98 x 140 mm
Power:40 hp
29.8 kW
Air cleaner:oil bath
Compression:15.0:1
Rated RPM:1350
Starter volts:12
Engine Detail
Massey-Harris
tractor fuel
4-cylinder
liquid-cooled vertical I-head
Displacement:259.4 ci
4.3 L
Bore/Stroke:3.875x5.50 inches
98 x 140 mm
Air cleaner:oil bath
Compression:4.65:1
Rated RPM:1350
Starter volts:6
Engine Detail
Massey-Harris
LP gas
4-cylinder
liquid-cooled vertical I-head
Only 460 model Massey Harris model 44 tractors were built with the LP-gas engine, all of them in 1952.
Displacement:259.4 ci
4.3 L
Bore/Stroke:3.875x5.50 inches
98 x 140 mm
Air cleaner:oil bath
Rated RPM:1350
Starter volts:6
