Tractors > Massey-Harris > 22

Massey-Harris 22 Tests



Massey-Harris 22 tractor photo
1948 - 1953
Row-Crop tractor
Series map:
22
30.0hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 403

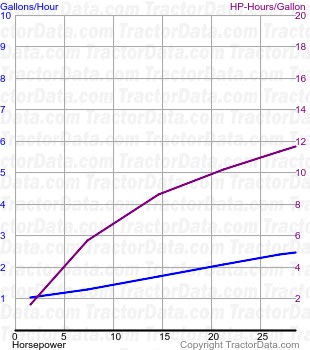

22 fuel use from test 403
Nebraska Tractor Test 403
Gasoline 4-speed 2WD
October 15 - 21, 1948
Link: Nebraska Tractor Test 403 file
Belt power (max)31.05 hp
23.2 kW
Belt fuel use (max)2.8 gal/hour
10.6 l/hour
Drawbar performance
Max power22.87 hp
17.1 kW
Gear 3 used for power test.
Max pull2,803 lbs
1271 kg
Gear 1 used for pull test.
