Tractors > Allis Chalmers > U

Allis Chalmers U Tests



Allis Chalmers U tractor photo
1929 - 1952
Standard-tread tractor
Tractor Tests
NTTL 170: Contintental 3-speed 2WD
NTTL 237: Waukesha 300 3-speed 2WD steel wheels
NTTL 237: Waukesha 300 3-speed 2WD rubber wheels
Nebraska Tractor Test 170

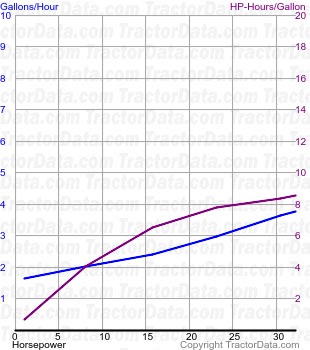

U fuel use from test 170
Nebraska Tractor Test 170
Contintental 3-speed 2WD
October 21 - November 7, 1929
Link: Nebraska Tractor Test 170 file
Belt power (max)35.04 hp
26.1 kW
Belt fuel use (max)4.2 gal/hour
15.9 l/hour
Drawbar performance
Max power25.63 hp
19.1 kW
Gear 1 used for power test.
Max pull3,679 lbs
1668 kg
Gear 1 used for pull test.
Nebraska Tractor Test 237

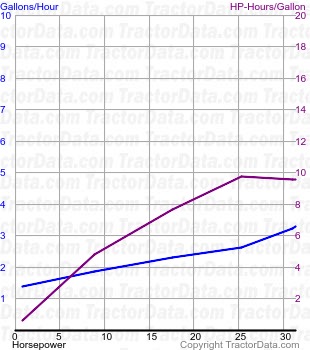

U fuel use from test 237
Nebraska Tractor Test 237
Waukesha 300 3-speed 2WD steel wheels
July 15 - August 5, 1935
Link: Nebraska Tractor Test 237 file
Belt power (max)34.12 hp
25.4 kW
Belt fuel use (max)4.1 gal/hour
15.5 l/hour
Drawbar performance
Max power23.83 hp
17.8 kW
Gear 2 used for power test.
Max pull3,428 lbs
1554 kg
Gear 1 used for pull test.
Nebraska Tractor Test 237
U fuel use from test 237
Nebraska Tractor Test 237
Waukesha 300 3-speed 2WD rubber wheels
July 15 - August 5, 1935
Link: Nebraska Tractor Test 237 file
Belt power (max)34.12 hp
25.4 kW
Belt fuel use (max)4.1 gal/hour
15.5 l/hour
Drawbar performance
Max power30.37 hp
22.6 kW
Gear 4 used for power test.
Max pull2,452 lbs
1112 kg
Gear 2 used for pull test.
