    Oliver 2255

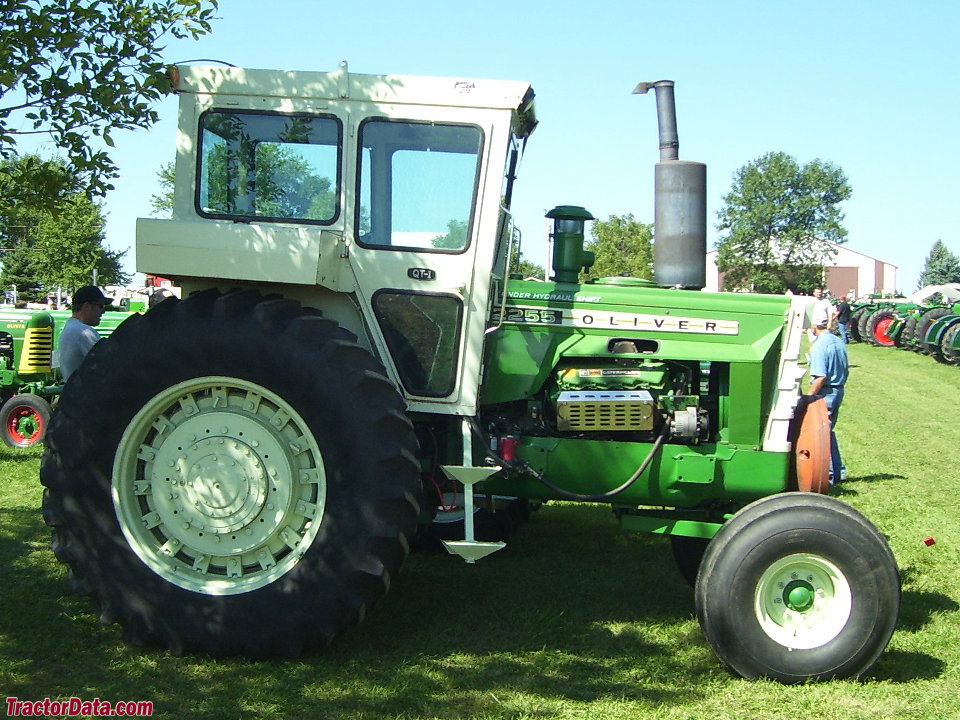

    Oliver 2255 tractor photo  I&T Manual: Oliver 1750, 1800, 1850, 1900, 1950, 1550, 1555, 1600, 1655, 1755, 1855, 1955, 2255
    I&T Shop Manual
    1972 - 1976






    Production:

    Manufacturer:Oliver
    Factory:Charles City, Iowa, USA
    Total built:2,160
    Original price (USD):$18,500 (1976)


    Oliver 2255 Engines:

       Caterpillar 9.4L 8-cyl diesel
       Caterpillar 10.4L 8-cyl diesel
    full engine details ...


    Capacity:

    Fuel:35 gal [132.5 L]
     30 gal [113.6 L] (cab tanks)
     78 gal [295.2 L] (fender tanks)


    3-Point Hitch:

    Rear Type:II/III
    Control:draft control
    Rear lift:6,000 lbs [2721 kg]


    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:1000
     540/1000 (optional)


    Dimensions & Tires:

    Wheelbase:108.3 inches [275 cm] (2WD)
     83.5 inches [212 cm] (4WD)
    Weight:16,500 lbs [7484 kg]
    Front tire:11.00-16
    Rear tire:18.4-38
    full dimensions and tires ...


    2255 Serial Numbers:


    - Serial numbers unknown -



    Links:

    Oliver V8: James Coblentz' Oliver 2255 fan site


    Oliver 2255 Power:

    Drawbar (tested):115.35 hp [86.0 kW]
    PTO (tested):146.72 hp [109.4 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Steering:hydrostatic power
    Brakes:hydraulic disc
    Cab:Open operator station. Optional ROPS. Cab available with optional heat and air-conditioning.


    Hydraulics:

    Type:closed center
    Valves:1 to 4
    Pump flow:20 gpm [75.7 lpm]


    Battery:

    Number:2
    Volts:12
