Tractors > Oliver > 1850

Oliver 1850

Oliver 1850 tractor photo
1964 - 1969   50 Series
Row-Crop tractor
Previous model:Oliver 1800
Series next:Oliver 1950
Series back:Oliver 1750






Production:

Manufacturer:Oliver
Original price (USD)
   $8,500 (1969 )


Variants:

1850:row-crop
1850 Wheatland:standard


Oliver 1850 Engines:

   Waukesha-Oliver 5.1L 6-cyl gasoline
   Perkins 5.8L 6-cyl diesel
   Waukesha-Oliver 5.1L 6-cyl LP Gas
full engine details ...


Capacity:

Gas Fuel:34.5 gal [130.6 L]
Diesel Fuel:31.5 gal [119.2 L]
LP-gas Fuel:42 gal [159.0 L]
 78 gal [295.2 L] *Capacity of optional wheel-guard tanks.
Hydraulic system:5 gal [18.9 L]


3-Point Hitch:

Rear Type:II
 III*Optional
Rear lift (at 24"/610mm):6000 lbs [2721 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540
 1000
 540/1000*Optional


Dimensions & Tires:

2WD Wheelbase:103 inches [261 cm]
4WD Wheelbase:86.25 inches [219 cm]
Weight:8965 to 16225 pounds
Front tire:7.50-15
Rear tire:18.4-34
full dimensions and tires ...


Oliver 1850 attachments:

 front-end loader
all 1850 attachments ...


1850 Serial Numbers:

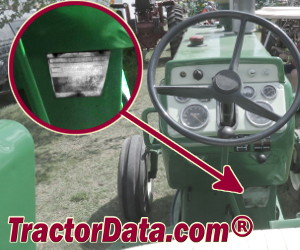

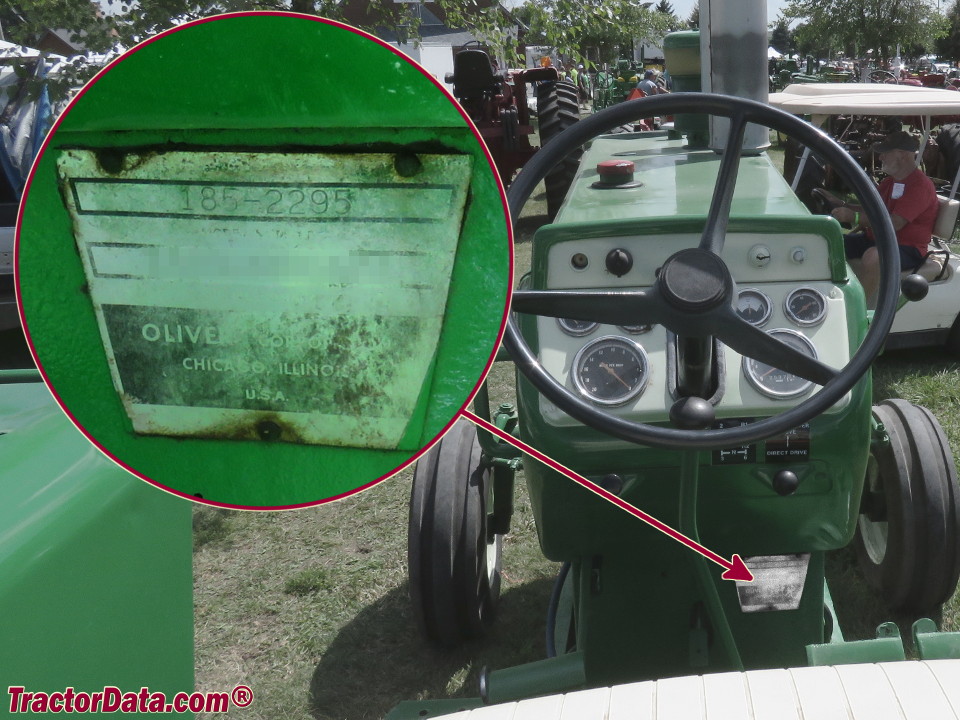

Location:instrument panel support
1964: 150421
1965: 153014
1966: 168127
1967: 183382
1968: 200360
1969: 212673

how to read serial numbers...



Oliver 1850 Power:

Gas PTO (claimed):92 hp [68.6 kW]
Diesel PTO (claimed):92 hp [68.6 kW]
LP-gas PTO (claimed):90 hp [67.1 kW]
Drawbar (tested):84.52 hp [63.0 kW]
PTO (tested):92.94 hp [69.3 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power assist
Brakes:differential disc
Cab:Open operator station. Oliver Continental Cab optional with available air-conditioning.


Hydraulics:

Type:open center
Capacity:5 gal [18.9 L]
Pressure:2500 psi [172.4 bar]
Valves:2 to 4
Pump flow:15.9 gpm [60.2 lpm]


Battery:

Number:1 (gas)
 2 (diesel)
Volts:12 (gas)
 6 (diesel)
