| Transmissions overview |
| 7-speed sliding gear |
| 14-speed |
| Transmission |
| Type: | sliding gear
|
| Gears: | 7 forward and 2 reverse
|
| Oil capacity: | 23 qts
21.8 L
|
| Speeds |
| With 16.9-30 rear tires. |
|
| Transmission |
| Transmission: | Ampli-couple
|
| Gears: | 14 forward and 4 reverse
|
| Oil capacity: | 23 qts
21.8 L
|

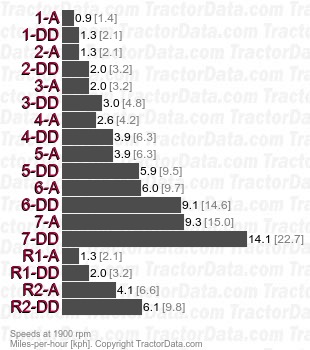

| Speeds |
| With 16.9-30 rear tires. |
|
