Tractors > Oliver > 550

Oliver 550

Oliver 550 tractor photo
1958 - 1975
Utility tractor
Previous model:Oliver Super 55






Production:

Manufacturer:Oliver
Factory:Charles City, Iowa, USA
Original price (USD)
   $4,400 (1975 )


Oliver 550 Engines:

   Oliver 2.5L 4-cyl gasoline
   Oliver 2.5L 4-cyl diesel
full engine details ...


Capacity:

Fuel:13 gal [49.2 L]
Hydraulic system:2.5 gal [9.5 L]


3-Point Hitch:

Rear Type:I


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/1000


Dimensions & Tires:

Wheelbase:73.5 inches [186 cm]
Weight:3,730 lbs [1691 kg]
Front tire:6.00-16
Rear tire:12-26
full dimensions and tires ...


550 Serial Numbers:

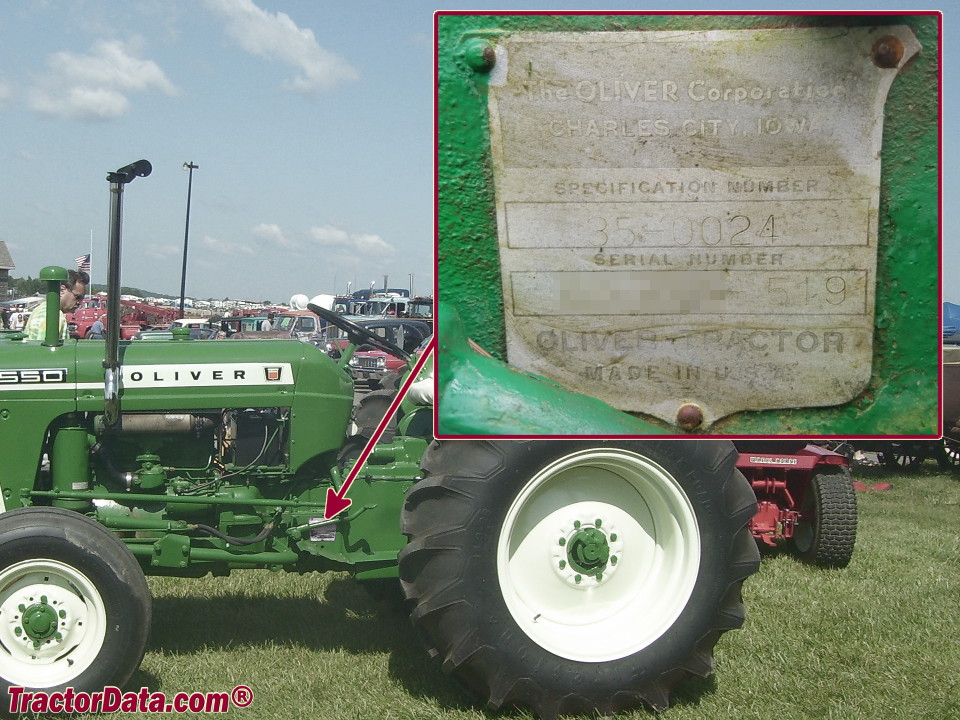

Location:Serial number plate located on the left side of the Oliver 550, above the foot rest.
1958: 60501
1959: 72632
1960: 84416
1961: 111868
1962: 117541
1963: 127365
1964: 140620
1965: 162265
1966: 171923
1967: 186165
1968: 206095
1969: 213340
1970: 222833
1971: 226965
1972: 232918
1973: 238237
1974: 248375
1975: 259255
Final: 259491

how to read serial numbers...



Oliver 550 Power:

Drawbar (claimed):35.3 hp [26.3 kW]
PTO (claimed):41.39 hp [30.9 kW]
Drawbar (tested):35.36 hp [26.4 kW]
PTO (tested):41.39 hp [30.9 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Steering:power assist
Brakes:differential mechanical dry disc
Cab:Open operator station.


Hydraulics:

Type:open center
Capacity:2.5 gal [9.5 L]
Pump flow:5.25 gpm [19.9 lpm]


Electrical:

Ground:positive


Battery:

Number:2 (diesel)
 1 (gas)
Volts:6 (diesel)
 12 (gas)
