    Cockshutt 50

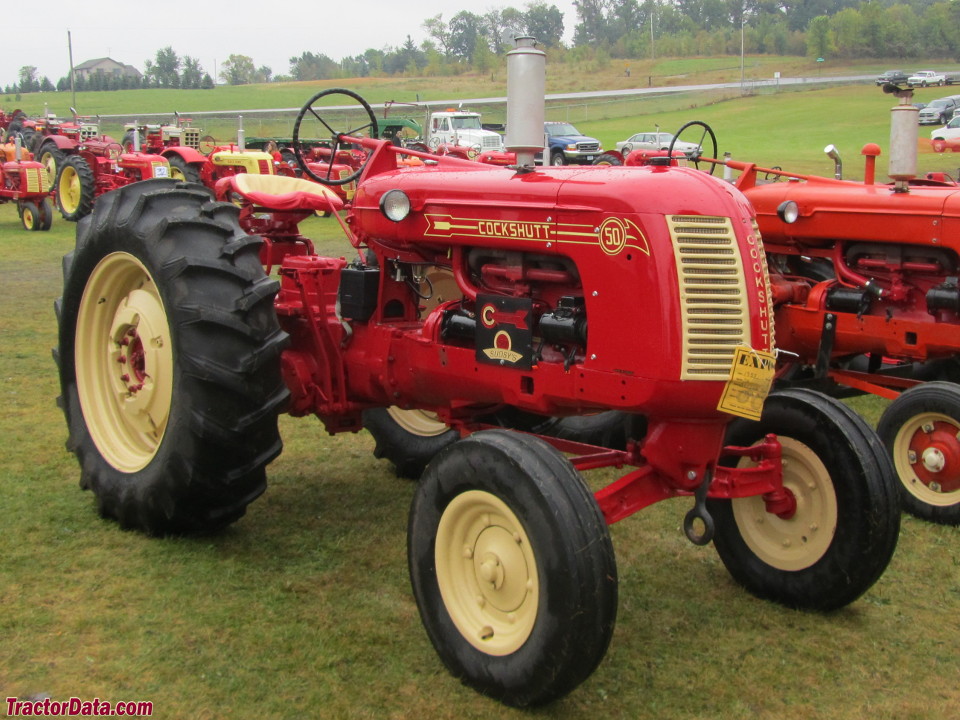

    Cockshutt 50 tractor photo  I&T Manual: Cockshutt 20, 30, 40, 50, CO-OP E2, E3, E4, E5
    I&T Shop Manual
    1953 - 1957
    Row-Crop tractor



    Factory:Brantford, Ontario, Canada
    Total built:3,974
    Original price (USD):$4,100 (1957)

    Cockshutt 50 Engines:

       Buda 4.5L 6-cyl gasoline
       Buda 4.5L 6-cyl diesel
    full engine details ...


    Fuel:21 gal [79.5 L]

    Power Take-off (PTO):

    Rear PTO:independent
    Rear RPMs:540

    Dimensions & Tires:

    Wheelbase:86.5 inches [219 cm]
    Weight:6041 to 11119 pounds
    Front tire:7.50x16
    Rear tire:14.00x34
    full dimensions and tires ...

    50 Serial Numbers:

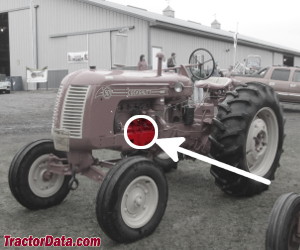

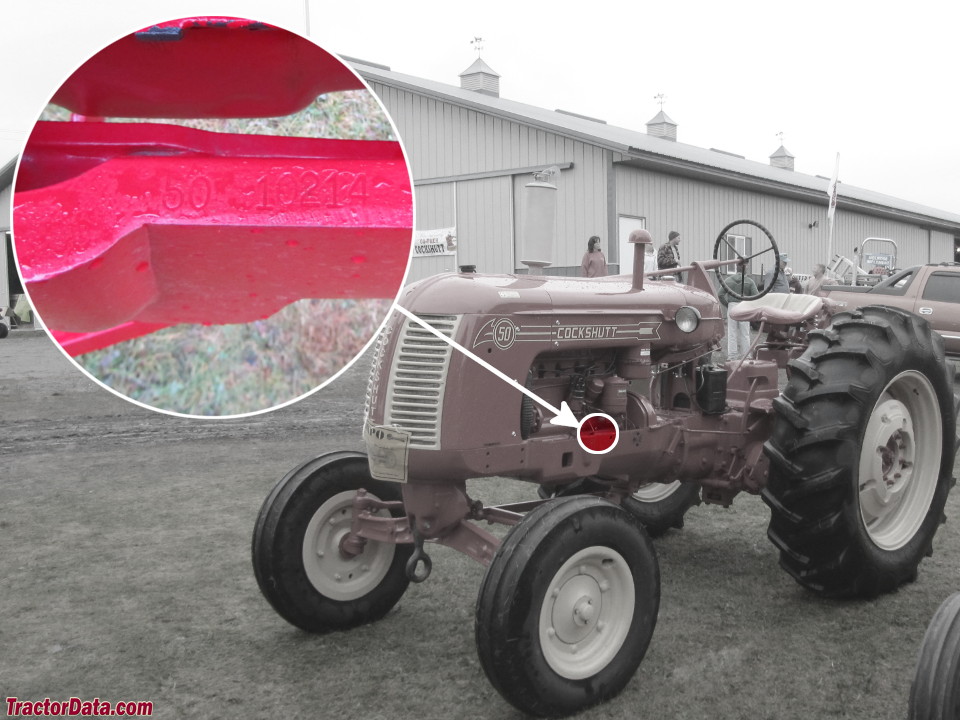

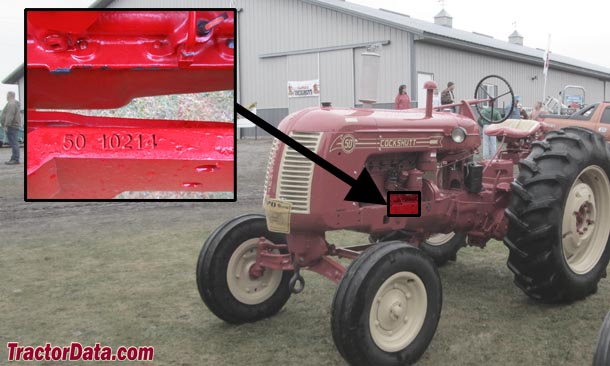

    Location:On top of main tractor frame, left side.
    photo of 50 serial number

    1953: 101
    1954: 1750
    1955: 10001
    1956: 20001
    1957: 30001
    1958: 40001
    Final: 40257

    how to read serial numbers...


    Cockshutt 50 Power:

    Drawbar (claimed):39 hp [29.1 kW]
    Belt (claimed):49 hp [36.5 kW]
    Drawbar (tested):51.59 hp [38.5 kW]
    Belt (tested):55.56 hp [41.4 kW]
    power test details ...


    Chassis:4x2 2WD
    Brakes:independent mechanical disc
    Cab:Open operator station.


    Number:1 (gas)
     2 (diesel)
