Tractors > Cockshutt > 30

Cockshutt 30

Cockshutt 30 tractor photo
1946 - 1957
Row-Crop tractor
Series back:Cockshutt 20





The Cockshutt 30 was the first production tractor built in Canada. The 30 was the first production tractor with a live PTO system.


Production:

Manufacturer:Cockshutt
Factory:Brantford, Ontario, Canada
Total built:37,328
Original price (USD):$2,500 (1952)


Cockshutt 30 Engine:

   Buda 2.5L 4-cyl gasoline
full engine details ...


Capacity:

Fuel:15 gal [56.8 L]
Hydraulic system:1.5 gal [5.7 L]


Power Take-off (PTO):

Rear PTO:live
Rear RPM:540


Dimensions & Tires:

Weight:3620 to 5528 pounds
Front tire:5.50-16
Rear tire:11-38
full dimensions and tires ...


30 Serial Numbers:

Location:Left-side frame, in front of transmission

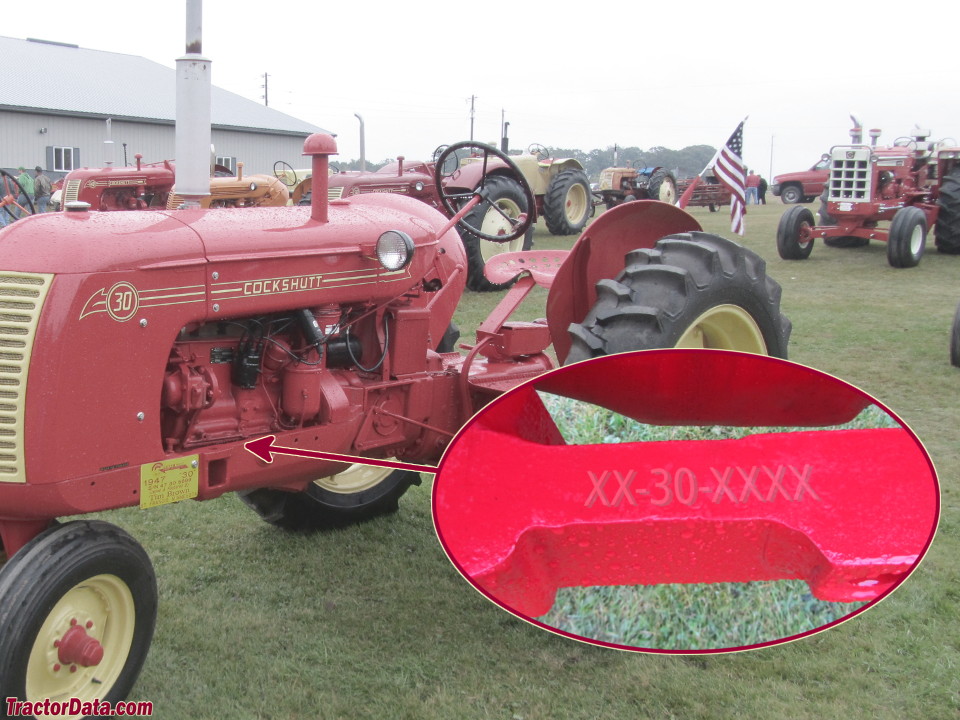

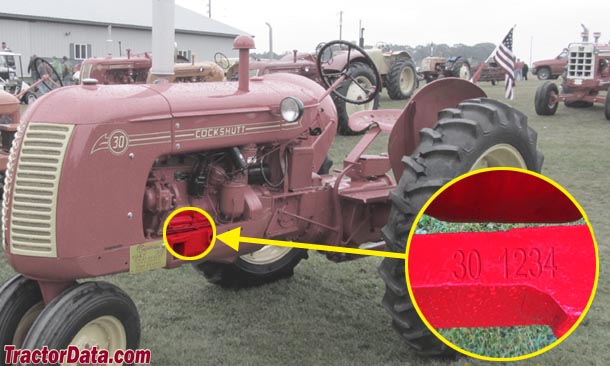

photo of 30 serial number

1946: 101
1947: 442
1948: 6705
1949: 17371
1950: 26151
1951: 28505
1952: 32389
1953: 35580
1954: 35974
1955: 40001
1956: 50001
1957: 60001

how to read serial numbers...



Cockshutt 30 Power:

Drawbar (claimed):21 hp [15.7 kW]
PTO (claimed):28 hp [20.9 kW]
Plows:2-3
Drawbar (tested):27.25 hp [20.3 kW]
PTO (tested):30.28 hp [22.6 kW]
Belt (tested):31.88 hp [23.8 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Brakes:mechanical contracting band
Cab:Open operator station.


Hydraulics:

Capacity:1.5 gal [5.7 L]


Electrical:

Ground:positive


Battery:

Number:1
Volts:6
